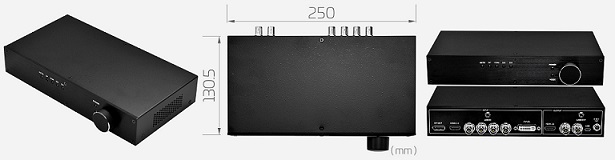

Model | Multi Converter 4K | |
---|---|---|
Description | HDMI 2.0, DisplayPort 1.2, DVI-DL, and 12G-SDI to 12G-SDI, HDMI 2.0 Converter | |
Feature | DisplayPort Multi-Stream Transport ( MST ) Support DVI Dual Link ( DVI-DL ) Support Multi-Standard Support ( 12G / 6G / 3G / HD-SDI ) Quad-Link 2 Sample Interleave ( 2SI ) Output Supported Auto Source Format Detection |
|
Input Interface | Video HDMI 2.0×1 DP 1.2×1 DVI-DL×1 12G-SDI×1 6G-SDI×1 3G-SDI×2 |
|
Output Interface | Converted Video 12G-SDI×2 HDMI 2.0×1 |
|
Supported Video Input Format | SDI 12G-SDI 4096×2160p@60/50fps 3840×2160p@60/50fps 6G-SDI 4096×2160p@30/25/24fps 3840×2160p@30/25/24fps 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps HDMI 2.0 / DP1.2 4096×2160p@60/50fps 4096×2160p@30/25/24fps 3840×2160p@60/50fps 3840×2160p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps |
DVI-DL 2560×1600p@60/50fps 2560×1600p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps |
Supported Video Output Format | SDI ( Converted, for SDI output, Please Provide Supported Resolutions as Below ) 12G-SDI 4096×2160p@60/50fps 3840×2160p@60/50fps 6G-SDI 4096×2160p@30/25/24fps 3840×2160p@30/25/24fps 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps |
HDMI ( Converted ) As Input Format |
Audio Input Format | HDMI / DP : 8 Channels, 24bit, 48KHz SDI : 8 Channels, 24bit, 48KHz |
|
Audio Output Format | HDMI : 8 Channels, 24bit, 48KHz SDI : 8 Channels, 24bit, 48KHz |
|
Plug & Play | V | |
DC In | 7.5V ~ 15V |
