1 CH 1080P30 SDI
Max. Input Resolution | 1920×1080p@60/50fps in → 1920×1080p@30/25fps out |
Video Input | 1×SDI |

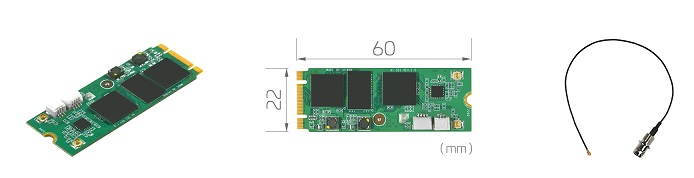

Dimension | 22×60 ( mm ) M.2 Type B/M |
Interface | M.2 ( PCIe×1 ) |
Feature | Multi Instances Multi Devices |
Video Input Detail | 1×SDI |
Video Output | 1×SDI ( Loop-Through ) |
Color Format | Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 |
Build-in Hardware Encode | N/A |
Video Processing | Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
Video Resolutions | 3G-SDI : 1920×1080p@60/50fps HD-SDI : 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI : 720×480i@60fps 720×576i@50fps |
Audio Input | 1×SDI Embedded Audio |
Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
GPIO | N/A |
WatchDog | N/A |
Supported Software Applications | vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ※DirectShow/V4L2 Compatable Software Supported |
SDK | Windows and Linux SDK |
OS Support | Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
