12G-SDI to 2×6G/4×3G-SDI
Model Name | 12G-SDI to QSDI |
Description | 12G-SDI to dual-link 6G-SDI or quad-link 3G-SDI Converter |
Feature | Quad-Link 2 Sample Interleave ( 2SI ) Output Supported Quad-Link 3G-SDI Output Supported Dual-Link 6G-SDI Output Supported Multi-Standard Support ( 12G/6G/3G/HD/SD-SDI ) 3G-SDI Level A/B-Dual Link/B-Dual stream Support |
Input Interface | Video 12G-SDI×1 |
Output Interface | Video 12G-SDI×1 6G-SDI×3 |
Supported Video Input Format | SDI 12G-SDI 4096x2160p@60/50fps 3840x2160p@60/50fps 6G-SDI 4096x2160p@30/25/24fps 3840x2160p@30/25/24fps 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps |
Supported Video Output Format | SDI 12G-SDI/Dual-Link 6G-SDI/Quad-Link 3G-SDI 4096x2160p@60/50fps 3840x2160p@60/50fps 6G-SDI/Dual-Link 3G-SDI/Quad-Link HD-SDI 4096x2160p@30/25/24fps 3840x2160p@30/25/24fps 3G-SDI/Dual-Link HD-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps |
GENLOCK Frame Lock Mode | N/A |
Audio Input Format | SDI : 16 Channels, 24bit, 48KHz |
Audio Output Format | SDI : 16 Channels, 24bit, 48KHz |
Plug & Play | ✓ |
DC In | 7.5V ~ 15V |

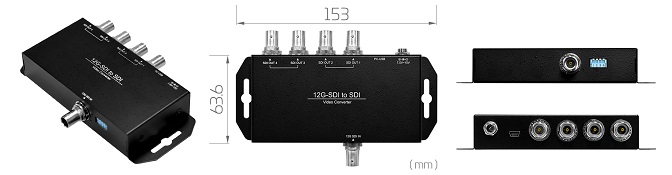

Dimension | L:123mm×W:63.6mm×H:26mm |
