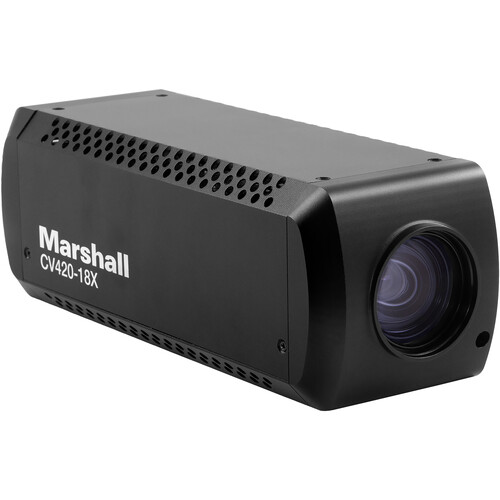

Компактная 18X Zoom 12MP 4K60 камера (12G/6G/3G-SDI/HDMI2.0) HD-HDR (PLQ/HLG)
Image Sensor | 1/1.7" Progressive, 12.4 MP |
Effective Pixels | 4096 x 2160 |
Pixel Size | 1.85 x 1.85 μm |

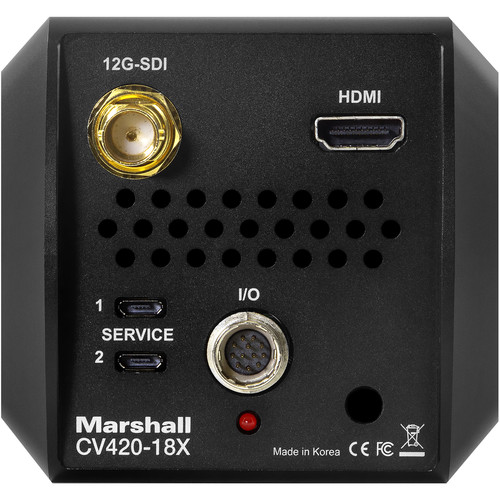

Connections | 1 x 12G/6G/3G-SDI Output on BNC 1 x HDMI 2.0 Type A Output 1 x I/O Port (Locking) for Included Breakout Cable |
Output Resolution | HDMI & 12G/6G/3G/HD-SDI: 4096 x 2160p at 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 3840 x 2160p at 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1920 x 1080p at 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1920 x 1080i at 60, 59.94, 50 1280 x 720p at 60, 59.94, 50 |
Minimum Illumination | Day: Full Auto (0.8 Lux), AE Manual Iris Open (0.4 Lux) Night: Full Auto (0.04 Lux), AE Manual Iris Open (0.02 Lux) |

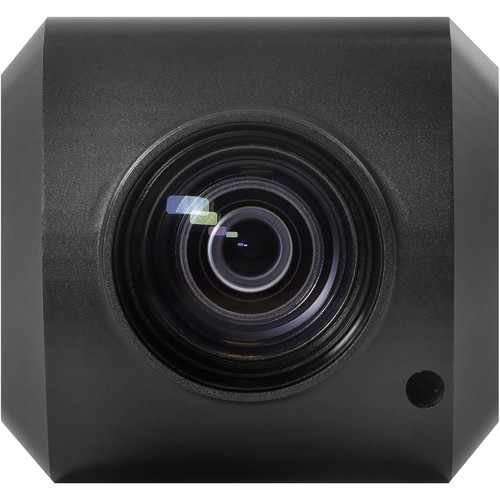

Built-In Lens | 6.8 - 120mm, f/1.6 - 4.1 |
Zoom | 18x Optical, 3x Digital |
Field of View | Horizontal: 55 to 3.4° |
Minimum Working Distance | 15 cm (Wide), 150 cm (Telephoto) |
Focus | Auto/Manual |
Exposure | Auto, Shutter Priority, Iris Priority, AGC Priority, Manual, Bright |
White Balance | AWB (3000 - 8000K), ATW (1900 - 11,000K), Indoor, Outdoor, One Push, Manual |
Light Modes | Day (Color), Night (B/W), Auto Switch |
Electronic Shutter | NTSC: 1/60 - 1/10,000, PAL: 1/50 - 1/10,000, Sens Up: Off - X15 |
Image Mirror/Flip | Yes |
Image Freeze | Yes |
Noise Reduction | 2D/3D |
Audio Input | 3.5 mm TRS Stereo Audio Jack (Mic/Line) on Breakout Cable |
Sample Rate | 16/24/32 Bits |
Control | RS-485, VISCA, Pelco-P/D |
Power Input | 12 VDC (7 to 15 VDC) |
Power Consumption | 25.2 W (Max) |
Housing | Aluminum |
Operating Temperature | 14 to 122°F / -10 to 50°C |
Dimensions | 9.1 x 3.4 x 3.1" / 23.2 x 8.6 x 8 cm |
Weight | 1.95 lb / 0.88 kg (Camera), 2.2 lb / 1 kg (with Breakout Cable) |
Package Weight | 3.52 lb |
Box Dimensions (LxWxH) | 16.5 x 5.2 x 4.1" |
