ХАРАКТЕРИСТИКИ ПРОДУКТА:

Потребление тока 0,9 A (вход разъема XLR), 0,3 A (источник питания PoE)
Требования к питанию 12 В постоянного тока (от 10,8 до 13,2 В)
масса 1,5 кг (3,31 фунта)
Размеры (Ш х В х Г) (мм) Ш 210 мм х В 92 мм х D 177 мм (без выступов)
Размеры (Ш х В х Г) (дюйм) 8-9 / 32 дюйма x 3-5 / 8 дюймов x 6-31 / 32 дюйма (исключая выступы)
дисплей Жидкокристаллический 3,5-тип (QHD 960 x 540)

Panasonic AW-RP60GJ Overview

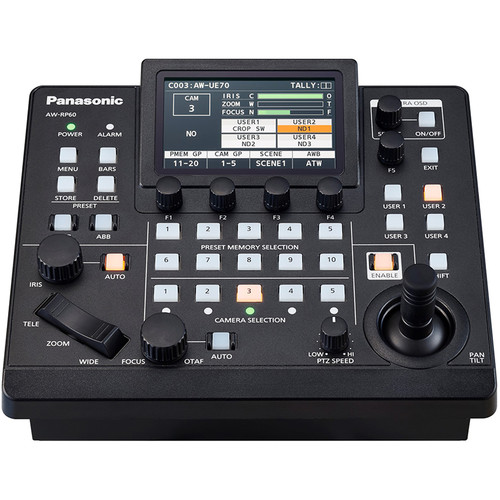

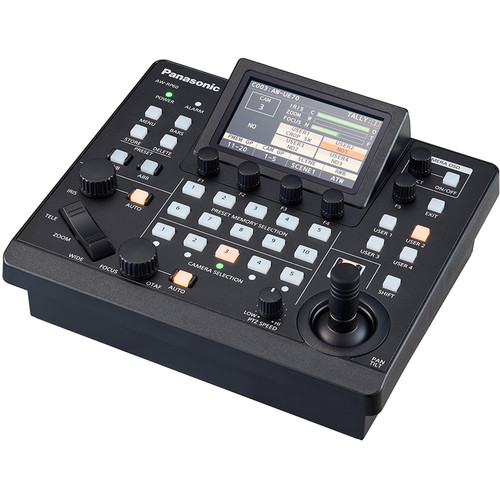

The AW-RP60 Remote Camera Controller from Panasonic offers both serial and IP control for select Panasonic Pro PTZ cameras. Ergonomic features include a 3.5" color LCD screen and an improved GUI that enables you to see all key camera parameters at once. The AW-RP60 supports up to 200 AW-UE150 cameras or up to 100 other compatible PTZ cameras via IP and up to five cameras via RS-422 serial control. Use the AW-RP60 with PoE (Power over Ethernet) for single-cable power and camera control or power the unit via its four-pin XLR DC input.

Camera controls include four user-assignable buttons with a total of eight functions, backlit buttons, and a smooth, accurate joystick. The AW-RP60 enables you to manage your cameras in up to 10 groups and set up to 100 pan, tilt, and zoom presets.

Camera functions including pan/tilt, zoom, focus, iris, gain, pedestal, shutter, white/black balance, green/red tally, and remote scene adjustment. This compact controller is suitable for tabletop or location use in remote production, educational purposes, and houses of worship settings.

Note:

Power supply or PoE hub not included.

PRO PTZ Camera Compatibility

AW-UE150

AW-HE130

AW-UE70

AW-HE42

AW-HE40

AW-HE38

AW-UE4

Note:

Available Spring 2020

AW-HR140

Features

IP Camera Control

Control up to 200 AW-UE150 or up to 100 other compatible PTZ cameras

RS-422 Serial Control

Control up to five cameras

PoE Support

Supply both power and camera control using a single Ethernet cable

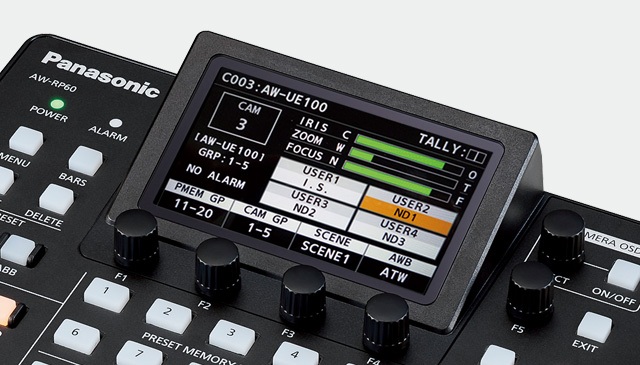

Large Color LCD

3.5" GUI menu interface

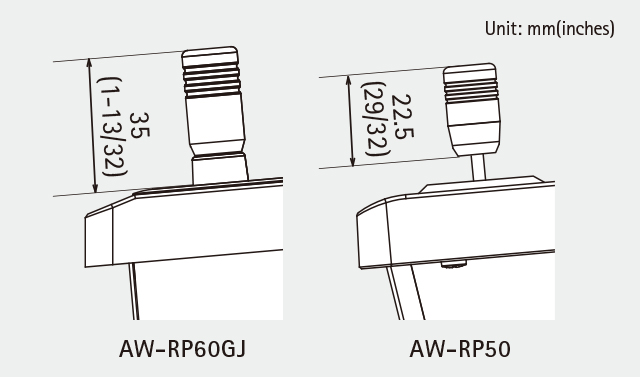

Intuitive Joystick

Smooth and responsive mid-size joystick

Presets

Set up to 100 pan, tilt, and zoom presets

Flexible Customization

Panasonic AW-RP60GJ Specs

Camera Control

IP Control	Up to 200 AW-UE150 Cameras Up to 100 Other Cameras
RS-422 Serial Control	Up to 5 Cameras
Camera Groups	Up to 20 (10 Units/Group)
Memory Presets	Up to 100

Display

LCD Display Size	3.5" / 89 mm
LCD Pixel Display	960 x 540

Power

XLR Connector	0.9 A
PoE Power Consumption	0.3 A
Power Requirements	12 VDC (10.8 to 13.2 V)
PoE Standard	IEEE802.3af 42 to 57 VDC (Camera Input)

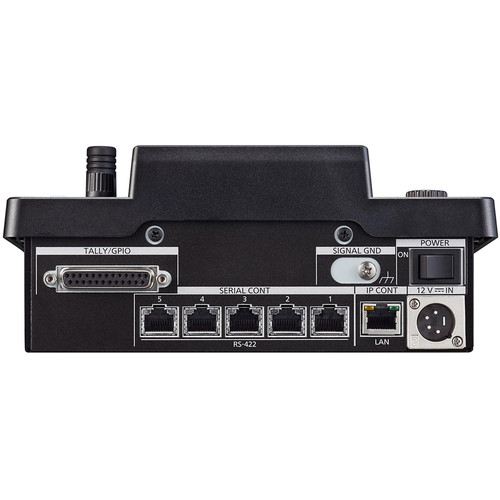

Interface - Rear Panel

Tally / GPIO	1 x D-Sub 25-Pin, Female, Inch Thread
RS-422 Serial Control	5 x RJ45
IP Control Port	LAN: 1 x RG45, 10BASE-T/100BASE-TX
DC In	1 x 4-Pin XLR, 12 VDC

General

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 122°F / -20 to 50°C
Operating Humidity	20% to 90% (Non-Condensing)
Exterior Dimensions (WxDxH)	8.3 x 7 x 3.6" / 210 x 177 x 92 mm
Weight	3.3 lb / 1.5 kg

Packaging Info

Package Weight	4.95 lb
Box Dimensions (LxWxH)	12 x 10.5 x 8"
