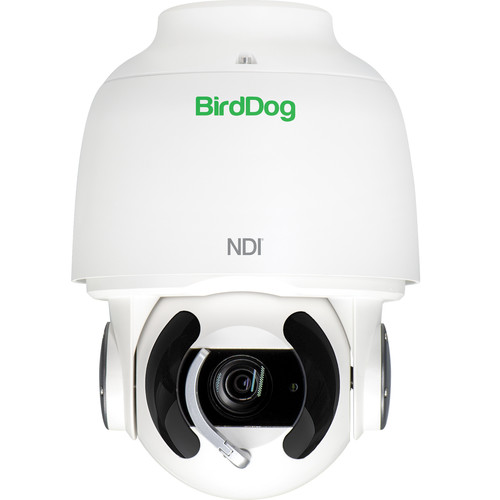

Видеокамера BirdDog Eyes A200 IP67

Датчик изображения1 / 2.8 inch CMOS 2.13MP

Len

4.3-129mm

Оптический зум

30x

Digital Zoom

12x

Horizontal Angle of View

63.7o(W) – 2.3o(T)

Aperture

F1.6(W) – F4.7 (T)

Min. Illumination

Color: 0.01 lux (F1.6,AGC on,1/30s, High sensitive mode), 0.1 lux(F1.6,AGC on,1/30s, Normal sensitive mode)

Shutter Speed

1/1 – 1/10000s

Focus

Auto, Push, Manual

White Balance

Auto,Indoor,Outdoor,Manual,OPW ,ATW

Exposure

Auto,Manual,Shutter/Iris Priority

Backlight Comensation

YES

MECHANICAL

Pan Movement

Horizontal:±360 degrees continuous pan (Zoom Adaptive Speed Range: 0.01°〜150°/S )

Tilt Movement

Vertical:+90 degrees to -15 degrees (Zoom Adaptive Speed Range: 0.05°〜90°/S)

Preset Positions

255 (Speed adjustable: Up to 150o/s)

Environmental

Outdoor/Indoor, IP67, corrosion resistant treated housing

Infrared

Adaptive infrared, illumination up to 100m

VIDEO INTERFACE

Video Output

NDI/SDI

Video Formats

1080P 60, 59.94, 50, 29.97, 25

1080i 60, 59.94, 50

720p 60, 59.94, 50, 29.97, 25

Audio I/O

3.5mm Audio In (Stereo)

3.5mm Audio Out (Stereo)

CONTROL INTERFACE

IP PTZ Control

NDI Control (auto configuring)

Serial PTZ Control

2x RJ45: RS232/RS422/RS485

Serial Control Protocol

VISCA / Pelco D

POWER & DIMENSIONS

Operating Temperature

-40 – +60 (oC)

Operating Humidity

=< 80%

Power Input

AC 24v, PoE 80W Ready (BirdDog PoE 80W Injector needed, optional)

Power Consumption

Min. 15W, Max. 60w (-40oC)

Dimensions

210x210x333mm

Weight

5.5kg

NETWORK

Video Compression

Full NDI – i-frame high quality low latency NDI for production

Network Protocol

NDI – Discovery, configuration and control

Web Control interface

Full control via Web/Mobile UI including Scene presets
