17,3″ LED настольный монитор со встроенным вектороскопом и осциллографом

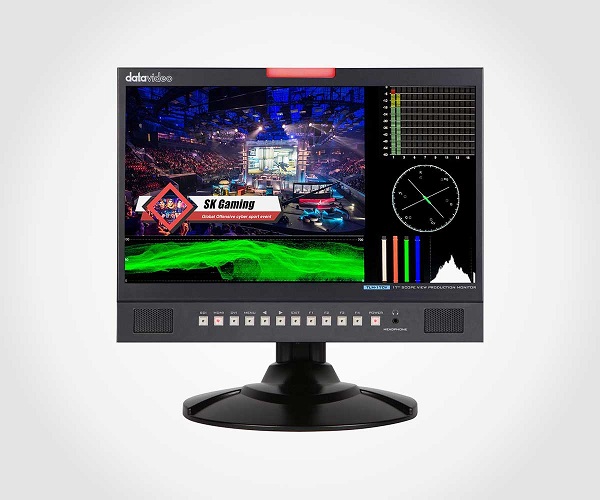

TLM-170V 17" ScopeView Production Monitor | |
---|---|
Screen |
17.3" LED Backlit |
Chassis |
Tabletop |
Resolution |
1920x1080 |
Viewing Angle |
(H) +89/-89° |
Luminance/Contrast |
300cd/m² |
Video Inputs |
1x 3G/HD/SD-SDI |
Loop Through |
1x 3G/HD/SD-SDI |
Supported Input Resolutions |
1080p(23.98/24/25/29.97/30/50/59.95/60Hz) |
Aspect Ratio |
16:9, 4:3 |
Tally LED |
Live (Red) |
Audio In/Out |
2x Speaker |
Special Features |
SDI and HDMI cross conversion, |
Dimension (LxWxH) |
403 x 305 x 41 mm |
Weight |
4.5 kg |
Operating Temp. Range |
0~40 °C |
Power |
DC 10-18V, 32W |
What's in the box |
1 x AD Switch DC 12V |
