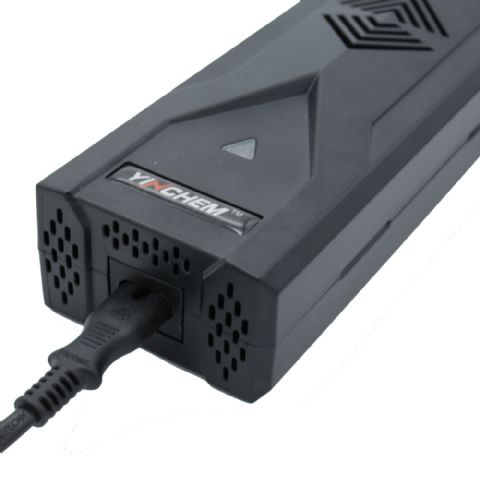

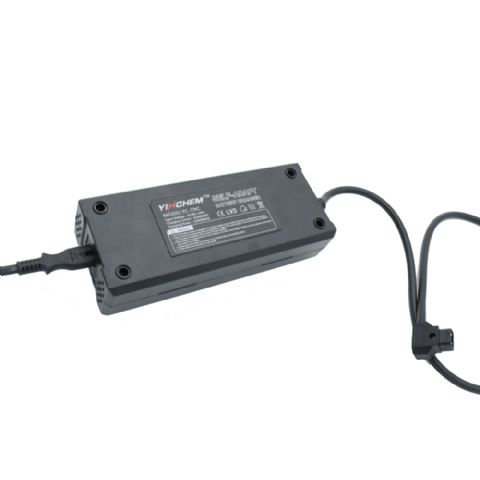

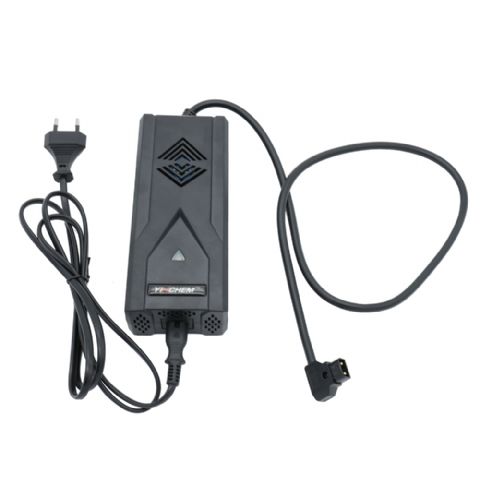

Зарядное устройство Rolux RL-ZNC

Умное зарядное устройство для аккумуляторов ROLUX через разъем P-TAP/ напряжение питания： AC: 90~242VAC, 47~63Hz
напряжение заряда: 16.8V 8.0A
Вес: 500грамм



Lightweight and portable
Intelligently identify the performance of battery, and minister the best charging state
The charging efficiency can up to 95%
The essential artifact of emergency charging on the photographed scenes



      1. The charger can automatically adjust the charging current according to the battery capacity to accommodate four lithium batteries of different capacitates in series, ensure the reasonable charging time of batteries.
       2. The charger has the built-in temperature controlled cooling fan, when the internal temperature of charger is detected more than 50℃, the fan dissipates the heat, and the fan stops when the internal temperature is detected less than 45℃.
      3. This charger is suitable for all brands of 3S battery pack, and is the best choice for emergency charging on the photographed scenes.
      4. Because this artifact comes with the self-identifying function of internal resistance of battery pack, it can assist you to distinguish the battery performance.
      5. This charger has the protection against the output short circuit.





      Remarks: The test demos listed in this comparison table are the new batteries used for the first time, and the corresponding charging time will change along with the usage times of the batteries.



Technical Parameters

Product model	YC-ZNC
Input voltage	AC 90V-240V
Charging current	8.0A(MAX)
Charging power	120W(MAX)
Display mode	LED Display
Reasonable numbers of battery packs	4S
Charging voltage	16.8V
Dimension	184x74x45 mm（Without line）
Weight	500g(With line)
