1 CH 4K60 HDMI2.0 with ProAV Scaler
Max. Input Resolution | 4096×2160p@60/50fps 1920×1080p@240/200fps |
Video Input | 1 × HDMI2.0 |

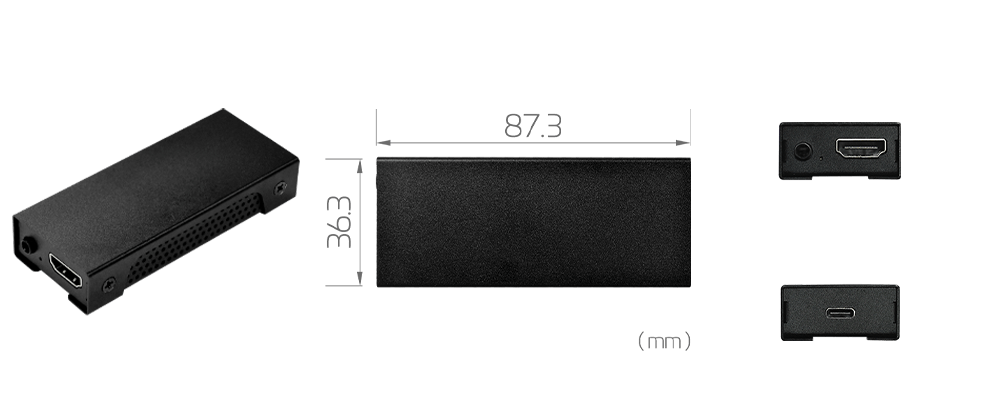

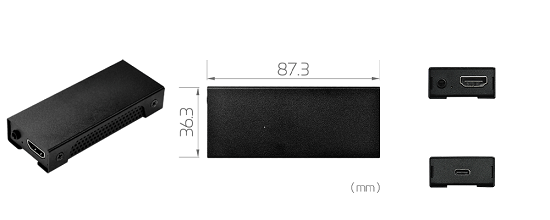

Dimension | N/A |
Interface | USB3.0 Type C (SuperSpeed) UVC |
Feature | N/A |
Video Input Detail | 1 × HDMI2.0 |
Video Output | N/A |
Color Format | YUY2, P010, NV12, I420 (USB 3.0) YUY2, P010, NV12, I420 (USB 2.0) |
Build-in Hardware Encode | N/A |
Video Processing | N/A |
Video Resolutions | All resolution below 4096×2160p@60fps 1920×1080p@240fps ( 422 10Bit HDR, 444 8Bit HDR ) |
UVC Video Output Resolution | USB3.0 Support Resolution 4096×2160p@60/50fps, 3840×2160p@60/50fps and 1920×1080p@240/200fps inputs will transfer to 3840×2160p@30fps ( NV12, I420 ) or 1920×1080p@60fps ( YUY2, P010 ) For all inputs below 3840×2160p@30fps( 1920×1080p@120/100fps), PD570C PRO HDMI2.0 HDR outputs will be the same USB2.0 Support Resolution All inputs will transfer to 640×480p@30/25 fps 720×576p@25 fps 720×480p@25 fps |
Audio Input | HDMI Embedded Audio 3.5mm Analog Stereo Audio |
Audio Format | Stereo / 16-bit / 48000Hz |
GPIO | N/A |
WatchDog | N/A |
OS Support | Windows 7 / Windows 8 / Windows 8.1 / Windows 10 ( 32-bit and 64-bit ) Linux / MAC OS |
