Yuan SC550N2-L SDI

Yuan SC550N2-L SDI

Артикул 12685
Производитель: Yuan
Цена: 68 607 руб.
Рейтинг:comment rank 5
Просмотров 656
Официальная гарантия

Только под заказ!
Итого:  Кол-во
Заказать

SC550N2-L SDI

2 CH 1080P60 SDI

SC550N2-L SDI

Max. Input Resolution 1920×1080p@60/50fps in → 1920×1080p@60/50fps out
Video Input 2×SDI

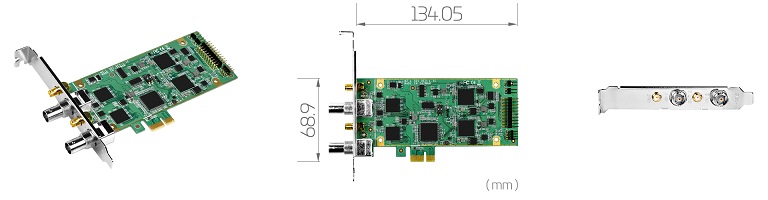

Dimension 134.05×68.9 ( mm )
PCIe Low Profile
Interface PCIe×1 ( Gen2 )
Feature Multi Instances
Multi Devices
Video Input Detail 2×SDI
Video Output 2×SDI
( Loop-Through )
Color Format Capture/Preview :
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
Build-in Hardware Encode N/A
Video Processing Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances
Video Resolutions 3G-SDI
1920×1080p@60/50fps

HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

SD-SDI
720×480i@60fps
720×576i@50fps
Audio Input 2×Stereo Embedded Audio
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
GPIO 16
WatchDog
Supported Software Applications vMix
OBS
ZOOM
Skype
Teams
Discord
Slack
Cisco Webex
GoToMeeting

※DirectShow/V4L2 Compatable Software Supported
SDK Windows and Linux SDK
OS Support Windows 7/Windows 8/Windows 8.1/Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )
Linux ARM
nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
