Yuan SC710N1 HDMI M2

Yuan SC710N1 HDMI M2

Артикул 12687
Производитель: Yuan
Цена: 49 896 руб.
Рейтинг:comment rank 5
Просмотров 745
Официальная гарантия

Только под заказ!
Итого:  Кол-во
Заказать

SC710N1 M2 HDMI2.0

1 CH 4K60 HDMI2.0

SC710N1 M2 HDMI2.0

Max. Input Resolution 4096×2160p@60/50fps
Video Input 1×HDMI2.0

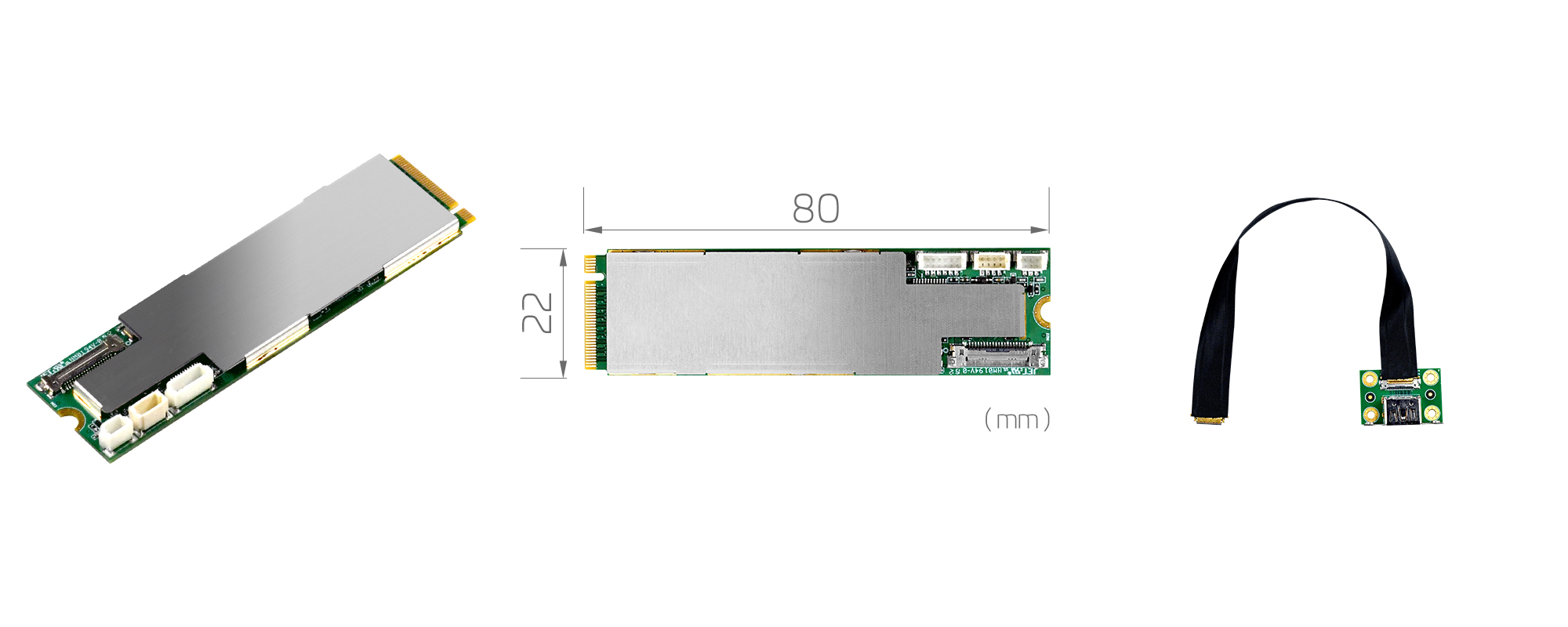

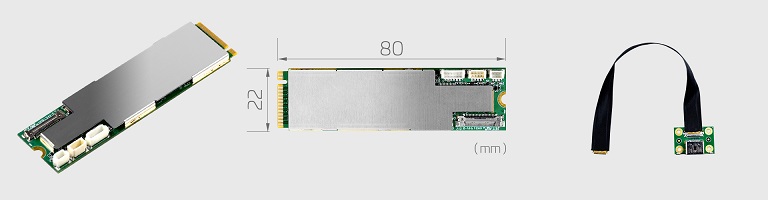

Dimension 22×80 ( mm )
M.2 Type M
Interface M.2 ( PCIe×4 )
Feature HDR10/HLG
HDMI 1.4B 3D
Multi Instances
Multi Devices
Video Input Detail Single-Link HDMI 2.0
Video Output N/A
Color Format Capture/Preview :
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
4:2:0 10Bit P010
Build-in Hardware Encode N/A
Video Processing Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances
Video Resolutions 4096×2160@60/50/30/25/24fps
3840×2160@60/50/30/25/24fps
2560×1440p@144fps
1920×1080p@240/144/120/100fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps

※More resolution supported by SDK
Audio Input 1×Stereo Embedded Audio
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
GPIO N/A
WatchDog N/A
Supported Software Applications vMix
OBS
ZOOM
Skype
Teams
Discord
Slack
Cisco Webex
GoToMeeting

※DirectShow/V4L2 Compatable Software Supported
SDK Windows and Linux SDK
OS Support Windows 7/Windows 8/Windows 8.1/Wind0ows 10
Linux 4.8 or Higher ( 32-bit and 64-bit )
Linux ARM
nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
