Yuan SC710N1 SDVoE

Yuan SC710N1 SDVoE

Артикул 12690
Производитель: Yuan
Цена: 214 137 руб.
Рейтинг:comment rank 5
Просмотров 691
Официальная гарантия

Только под заказ!
Итого:  Кол-во
Заказать

Плата для работы с SDVoE. 4K до 4096×2160p@60/50fps. Программная компрессия в реальном времени. HDMI выход.



Model SC710N1-L SDVoE-C
Max. FPS 4096×2160p@60/50fps in → 4096×2160p@60/50fps out
Recording Mode Software Compression, Real-Time Mode

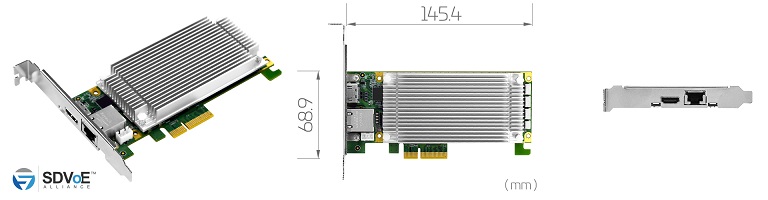

Dimension 145.4×68.9( mm )
Interface PCIe×4( Gen2 )
Video Input 1×RJ45 ( 10G )
( HDR Support, RGB/YUV 420/422/444 8/10bits )
Video Output 1×HDMI 2.0
( Loop-Through )
Display Video Format YV12, NV12, YUY2, RGB24, RGB32, V410, Y410, P010, P210
Video RAW Data Resolution 1×RJ45 ( 10G )
4096×2160@60/50/30/25/24fps
3840×2160@60/50/30/25/24fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
Recording Video Format H.264 ( Software Compression )
Recording Video Resolution 1×RJ45 ( 10G )
4096×2160@60/50/30/25/24fps
3840×2160@60/50/30/25/24fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
Audio Input 1×SDVoE Embedded Audio
Audio Output 1×HDMI Embedded Audio
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
Multiple Cards
SDK Support API : DirectShow, V4L2, FFmpeg, Gstreamer
Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
  System Requirement
OS Support Windows 7 / Windows 8 / Windows 8.1 / Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )
