Конверторы видеосигналов Yuan SDI to HDMI2.0 4K Cross

Конверторы видеосигналов Yuan SDI to HDMI2.0 4K Cross

Артикул 12701
Производитель: Yuan
Цена: 107 017 руб.
Рейтинг:comment rank 5
Просмотров 735
Официальная гарантия

Только под заказ!
Итого:  Кол-во
Заказать

Преобразователь видео сигналов 4K-HDMI/3G-SDI to 4K-HDMI/3G-SDI Up/Down Конвертор с Genlock

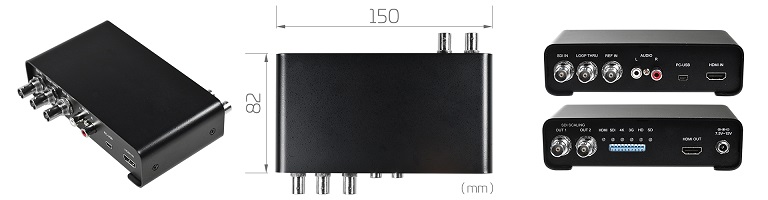

Model SDI ⇌ HDMI2.0 4K Cross
Description 4K-HDMI / 3G-SDI to 4K-HDMI / 3G-SDI
Up / Down Converter with Genlock
Feature SDI to 4K HDMI Conversion
4K HDMI to SDI Conversion
Support Reference Input for Genlock
Aspect Ratio Conversion
Configure Via USB Port or Button
Region of Interest
Test Pattern Generator
Automatically Detection SD, HD and 3G-SDI Standards
Video Quality adjust ( Brightness / Contrast / Saturation / Hue )
Built-in Hardware Scaling Engine with Anti-Aliasing
Text Labels ( 20 Characters )
Input HDMI 2.0×1
SDI×1
REF×1
Audio Input RCA×2 ( 1 Pair )
Output Up / Down Converted HDMI 2.0×1
Up / Down Converted SDI×2
Loop-Through SDI×1
Supported Video Input Format SDI Port Input Format
1080p60/50, 1080i60/50, 1080p30/25/24, 720p60/50
1080p59.94, 1080i59.94, 720p59.94, 1080p29.97, 1080p23.98
525i, 625i

HDMI 2.0 Port Input Format
3840×2160p60/59.94/50
3840×2160p30/29.97/25/24/23.98
1920×1080p60/59.94/50/30/29.97/25/24/23.98
1920×1080i60/i59.94/50
1280×720p60/59.94/50
720×480p60/59.94, 720×576p50
525i, 625i
Supported Video Output Format Up/Down Converted SDI Port Format
1080p60/50, 1080i60/50, 1080p30/25/24, 720p60/50
1080p59.94, 1080i59.94, 720p59.94, 1080p29.97, 1080p23.98
525i, 625i

Up/Down Converted HDMI 2.0 Port Format
3840×2160p60/59.94/50 3840×2160p30/29.97/25/24/23.98 1920×1080p60/59.94/50/30/29.97/25/24/23.98 1920×1080i60/i59.94/50, 1280×720p60/59.94/50 720×480p60/59.94, 720×576p50 525i, 625i
GENLOCK Frame Lock Mode Free-Run, External Sync Input
Supported Audio Format Up to 8 Channels, 24bit, 48KHz
Plug & Play V
DC In 7.5V ~ 15V
