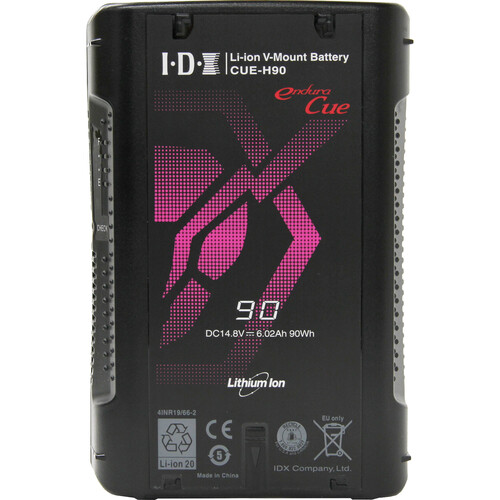

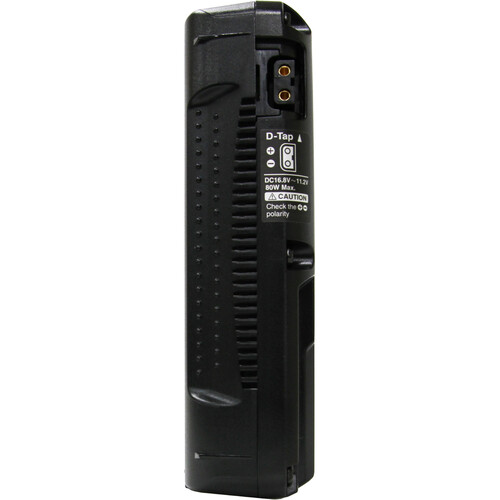

Power your camera or other pro video equipment with the CUE-H90 90Wh Compact Li-Ion V-Mount Battery from IDX System Technology. The battery can supply up to 16.8 VDC to the plate, and it can also provide up to 80W to power accessories through the integrated D-Tap output. CUE-H90 batteries feature a nominal voltage of 14.8 VDC, a maximum output voltage of 16.8 VDC, and a maximum 7A draw.
CUE-H-series batteries feature an even higher capacity than their CUE-D predecessor while maintaining the same internal pack design that isolates it for reliability and safety. There is also built-in prevention of overcharging, overdischarging, or overcurrent. IDX CUE-H90 batteries should be charged using IDX-branded chargers; third-party chargers may not charge CUE-H90 batteries correctly.
Mount / Series Type | V-Mount |
Chemistry | Lithium-Ion |
Capacity (Wh) | 90 Wh |
Output Voltage | 14.4 VDC |
Maximum Load | 7 A (Peak) |
Accessory Port | 1 x D-Tap Output 80W |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Charging Temperature | 32 to 104°F / 0 to 40°C |
Discharging Temperature | -4 to 113°F / -20 to 45°C |
Dimensions (W x H x D) | 5.75 x 3.82 x 1.54" / 146.05 x 97.03 x 39.12 mm |
Weight | 1.34 lb / 0.61 kg |
Package Weight | 1.47 lb |
Box Dimensions (LxWxH) | 6.9 x 4.5 x 2" |
