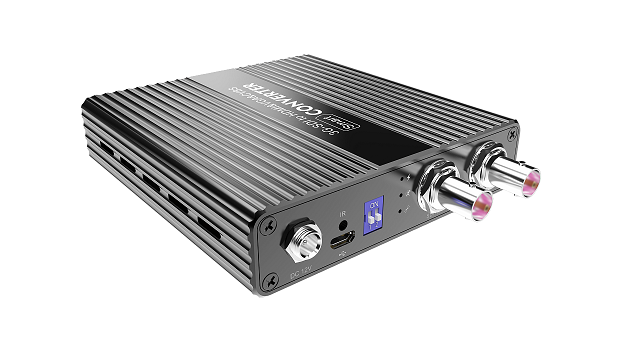

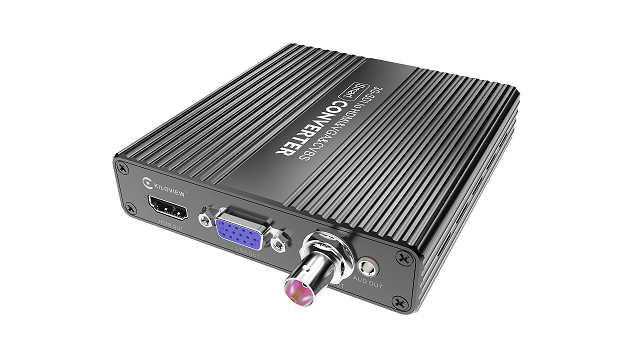

Конверторы видеосигналов Kiloview CV180 Video converter конвертер

Model

CV180

Input

1*BNC SDI (SD/HD/3G SDI)

Output

1*SDI, 1*HDMI, 1*BNC AV(CVBS), 1*VGA (Either two signals output simultaneously)

Input format

525i 59.94,625i 50;

720p 23.98/24/25/29.97/30/50/59.94/60;

1080i 50/59.94/60;

1080p 23.98/24/25/29.97/30/50/59.94/60.

Loop out

1*BNC SDI

SDI transmitting distance

Belden 1694A: SD-SDI 400m, HD-SDI 200m, 3G-SDI 120m;

Note: different cables have different transmission distances.

Framerate/resolution conversion

Support

Audio de-embedding

Support

Management

Remote control/PC connection with USB

Power supply

12V, 1A

Consumption

4w

Operation temperature

-20~60°C

Dimension

120*100*26mm (4.72*3.94*1.02”)

Weight

315g (11.1oz)
