Плата захвата видео 4 канала HDMI
Model Name :
SC400N4 SDI
Max. Input Resolution :
1920×1080p@60/50fps
Video Input :
4×HDMI

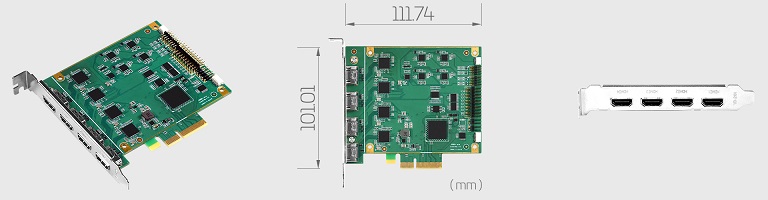

Dimension :
111.74×101.01 ( mm )
PCIe Full Height
Interface :
PCIe×4 ( Gen2 )
Feature :
Multi Instances
Multi Devices
Video Input Detail :
HDMI
Video Output :
N/A
Color Format :
Capture/Preview :
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
4:2:0 10Bit P010
Build-in Hardware Encode :
N/A
Video Processing :
Video, Audio and VANC Capture
Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances
Video Resolutions :
HDMI :
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
✻ More resolution supported by SDK
Audio Input :
4×Stereo Embedded Audio
Audio Format :
Stereo / 16-bit / 32000 ~ 48000Hz
GPIO : 16
WatchDog :
✓
