Yuan SC710N2-L HDMI 2.0

Model Name :
SC710N2-L HDMI2.0
Max. Input Resolution :
4096×2160p@60/50fps
Video Input :
2×HDMI 2.0

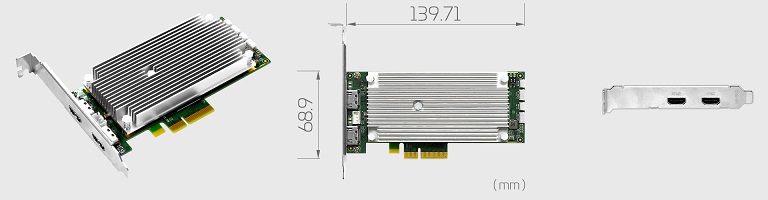

Dimension :
139.71×68.9 ( mm )
PCIe Low Profile
Interface :
PCIe×4 ( Gen2 )
Feature :
8K30 Dual-Link HDMI 2.0
Multi Instances
Multi Devices

Video Input Detail :
Single-Link HDMI 2.0
Dual-Link HDMI 2.0
Video Output :
N/A
Color Format :
Capture/Preview :
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
4:2:0 10Bit P010
Build-in Hardware Encode :
N/A
Video Processing :
Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances

Video Resolutions :
4096×2160@60/50/30/25/24fps
3840×2160@60/50/30/25/24fps
2560×1440p@144fps
1920×1080p@240/144/120/100fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
✻ More resolution supported by SDK

Audio Input :
2×Stereo Embedded Audio
Audio Format :
Stereo/16-bit/32000~48000Hz

Supported Software Applications :
vMix
OBS
ZOOM
Skype
Teams
Discord
Slack
Cisco Webex
GoToMeeting
✻ DirectShow/V4L2 Compatable Software Supported
SDK :
Windows and Linux SDK
OS Support :
Windows 7/Windows 8/Windows 8.1/Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )
Linux ARM
nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
