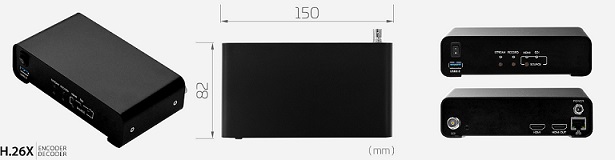

Yuan SC6D0N1 Lite NDI

Yuan SC6D0N1 Lite NDI

Артикул 13632
Производитель: Yuan
Цена: 88 011 руб.
Рейтинг:comment rank 5
Просмотров 448
Официальная гарантия

Только под заказ!
Итого:  Кол-во
Заказать
Connection Interface



Model SC6D0N1 AIO Lite
Max. FPS 1920×1080p@60/50fps
Recording Mode Hardware Compression, Real-Time Mode
Input Interfaces Video
1×HDMI
1×SDI

Audio
HDMI Embedded Audio
SDI Embedded Audio
1×3.5 mm Phone Jack
Output Interface Video
1×HDMI

Audio
HDMI Embedded Audio
Video Feature H.264 / H.265 / AVC, Baseline / Main / High Profile
Configurable Bit Rate Up to 32Mbps (for each stream)
Supported Resolutions
Input
1920×1080 ( P60/P50/P30/P25/P24/i60/i50 )
1280×720 ( P60/P50 ), 1280×1024 ( P60 ), 1280×960 ( P60 )
1024×768 ( P60 ), 800×600 ( P60 ), 720×480 ( P60/i60 )
640×480 ( P60 ), 720×576 ( P50/i50 )

Output
Resize Range from 320×240 to 1920×1080 ( P60 )
* Output Include Down Scaling.
Audio Feature AAC-LC
Configurable Bit Rate Range from 32Kbps to 384Kbps
Sample Rate : 48KHz, 16Bit
Network Feature 1×RJ45 for 10/100/1000Mbps Ethernet
DHCP Client
Support Streaming Protocol NDI Support
TS Over UDP ( Unicast & Multicast )
RTSP Over HTTP/TCP/UDP ( RTSP Elementary Stream )
RTMP ( Publish )
HLS
Misc. Features Dynamic Parameter Setting
1×USB 3.0 Host for USB Storage
Web UI for System Configuration
Firmware Upgradable
Record Format MP4 / TS / MOV
  System Requirement
Power Supply DC input : 12V / 2A
