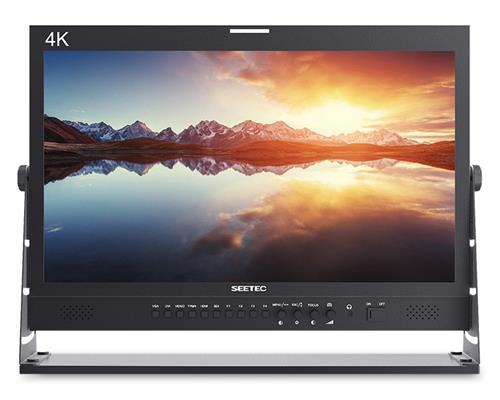

Display Spec.
| Model | 4K215-9HSD-192 |
| Screen Size | 21.5" IPS |
| Color Depth | 16.7M (8-bit) |
| Resolution | 1920×1080 pixels |
| Pixel Pitch | 248.25x248.25 um |
| Aspect Ratio | 16:9 |
| Brightness | 250cd/m² |
| Contrast Ratio | 3000:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |

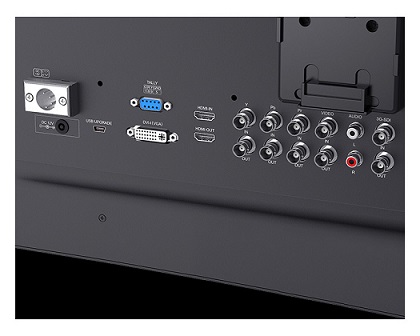

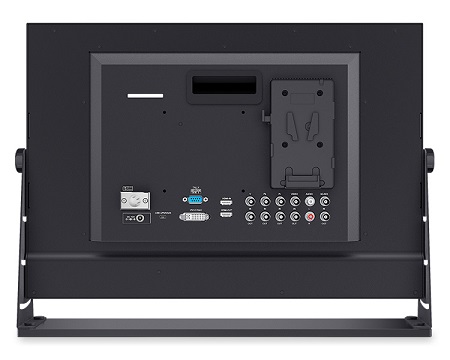

Input
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 3 X BNC | YPbPr |
| 1 X DVI-I | DVI-I |
| 1 X BNC | Video |
| 2 X RCA | Audio(L/R) |
Output
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 3 X BNC | YPbPr |
| 1 X BNC | Video |
Audio
| Audio | Stereo Headphone, Speaker |
SDI Support Format
| 480i/576i |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
HDMI Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
General
| Input Voltage | DC9～24V |
| Power Consumption | ≤15W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Unit Size | 511.6Lx355.5Hx41.87D (mm) (W/O Bracket) |
| Unit Weight | 4.65kg (W/O Bracket) / 6.5kg (W/ Bracket) |
Advanced Features
| * Peaking Focus Assist(Red highlight over parts of the monochrome image in focus) |
| * Center Marker |
| * Screen Marker (80%,85%,90%,93%,96%,2.35:1) |
| * Image Freeze |
| * Image Flip (H, V, H/V) |
| * Camera Mode |
| * Pixel-to-Pixel |
| * Check Field (Red,Green,Blue,Mono) |
| * Zoom All (Nonsupport in 4K input) |
| * U/D & L/R Zoom (Nonsupport in 4K input) |
| * Aspect Ratio (Nonsupport in 4K input) |
| * Custom Color Temperature |
| * Built-in LED tally indicators |
Dimensions (Unit: mm)
