HDMI в 3G-SDI up/down конвертор с PIP/PBP. Два HDMI входа с конвертацией в SDII с режимами "картинка-в-картинке две картинки на экране
Model

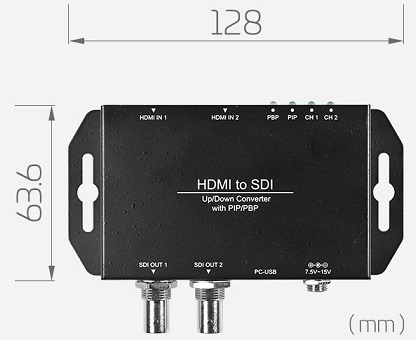

2 × HDMI to SDI
Description
HDMI to 3G-SDI Up / Down Converter with PIP / PBP
Feature
PIP / PBP Feature for 2 SDI Outputs
I ↔ P Conversion ( Built-In Interlacer and DeInterlacer. )
60fps ↔ 59.94fps Conversion
Frame Rate and Format Up / Down Conversion
Dual Converted SDI Output
Input Interface
Video
HDMI×2
Output Interface
Up / Down Converted Video
SDI×2
Supported Video Format
HDMI
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps
Supported Video Output Format
SDI ( Up / Down Converted )
3G-SDI
1920×1080p@60/50fps
HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
SD-SDI
720×480i@60fps
720×576i@50fps
Audio Input Format
HDMI : 2 Chanonels, 24bit, 192KHz
Audio Output Format
SDI : 2 Channels, 24bit, 48KHz
Plug & Play
V
DC In
7.5V ~ 15V
