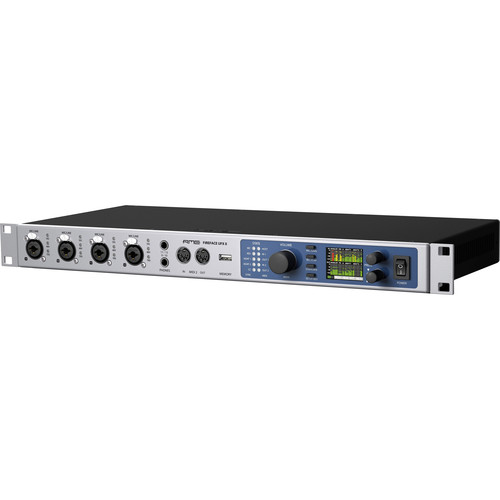

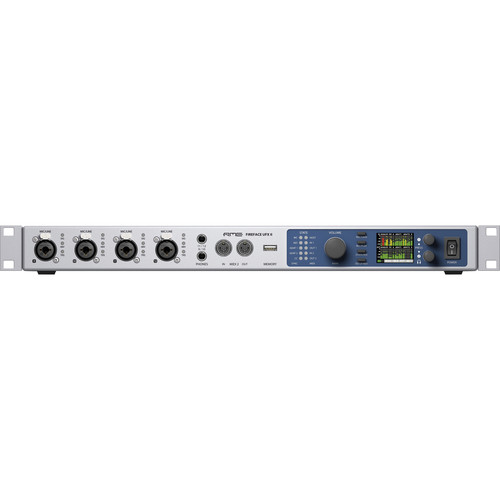

RME Fireface UFX II: Артикул 14012; Производитель: RME; Цена: 305 000 руб.; Рейтинг:; Просмотров 389; Официальная гарантия; Только под заказ!; Бесплатная доставка по Москве в пределах МКАД!; Итого: Кол-во; Заказать

интерфейс USB 60-канальный (2 ADAT, AES/EBU, аналог), 192 кГц. 1U

RME Fireface UFX II Specs

Form Factor	Rackmount
Display	None
Channels of I/O	30 Input / 30 Output
Maximum Sampling Rate	192 kHz / 24-Bit
Number of Microphone Preamps	4 Preamps
Built-In Microphone	None
Expansion Slots	None

Signal Processing

Pad	None
Gain/Trim Range	Line Inputs: 0 dB to +12 dB Mic Inputs: 75 dB Hi-Z Inputs: 42 dB
High-Pass Filter	None
Solo/Mute	None

Connectivity

Analog Audio I/O	8 x 1/4" TRS Balanced Line Input 4 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 6 x 1/4" TRS Balanced Line Output 2 x XLR 3-Pin Balanced Line Output 2 x 1/4" TRS Unbalanced Headphone Output
Phantom Power	48 V
Digital Audio I/O	1 x XLR 3-Pin AES3 / S/PDIF Input 1 x TOSLINK Optical ADAT Input (S/MUX Support) 1 x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support) 1 x XLR 3-Pin AES3 / S/PDIF Output 1 x TOSLINK Optical ADAT Output (S/MUX Support) 1 x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support)
Host Connection / USB	1 x USB-B
Host Connection Protocol	USB 2.0, USB 3.0 / 3.1/3.2 Gen 1
USB (Non-Host)	1 x USB-A (Remote)
Sync I/O	1 x BNC Word Clock Input 1 x BNC Word Clock Output
Network I/O	None
MIDI I/O	1 x DIN 5-Pin Input 1 x DIN 5-Pin Output
Wireless Connectivity	None

Performance

Frequency Response	Line Inputs: 5 Hz to 20.8 kHz +0/-0.1 dB (at 44.1 kHz) 3 Hz to 45.8 kHz +0/-0.5 dB (at 96 kHz) 2 Hz to 92 kHz +0/-1 dB (at 192 kHz) Line Outputs: 5 Hz to 20.8 kHz +0/-0.5 dB (at 44.1 kHz) 5 Hz to 45 kHz +0/-0.5 dB (at 96 kHz) 5 Hz to 89 kHz +0/-1 dB (at 192 kHz)
Maximum Input Level	Line Inputs: +19 dBu Mic Inputs: +18 dBu (Unity Gain) -57 dBu (Max Gain) Hi-Z Inputs: +21 dBu (Min Gain) -21 dBu (Max Gain)
Maximum Output Level	Line Outputs: +19 dBu at 0 dBFS Monitor Outputs: +24 dBu at 0 dBFS
Headphone Output Power	210 mW per Channel into 32 Ohms (Max, 0.1% THD)
Impedance	BNC Word Clock : 10 Ohms Line Inputs: 8 Kilohms (Unbalanced) 12 Kilohms (Balanced) Mic Inputs: 3.4 Kilohms Hi-Z Inputs: 1 Megohm Line Outputs: 75 Ohms (Unbalanced) 150 Ohms (Balanced) Headphone Outputs: 2 Ohms
Dynamic Range	Line Outputs: 115 dB RMS 118 dBA
SNR	Line Inputs: 113 dB RMS 116 dBA Mic Inputs: 115 dB RMS 118 dBA Hi-Z Inputs: 114 dB RMS 118 dBA
THD	Line Inputs: < -110 dB / < 0.00032% Line Outputs: < -110 dB / < 0.00032%
THD+N	Line Inputs: < -104 dB / < 0.00063% Line Outputs: < -104 dB / < 0.00063%
Channel Separation	Line Inputs: > 110 dB Line Outputs: > 110 dB

Digital Audio

Sample Rates	192 kHz
Sample Rate Conversion	None
Bit Depths	24-Bit
Sync Sources	ADAT, AES3, Internal, MADI, Word Clock
Clocking	Input Termination: 75 Ohms (Switchable) Input Voltage: 1 to 5.6 V p-p Output Voltage: 4 to 5 V p-p Lock Range: 27 to 200 kHz Jitter: 800 ps Jitter Suppression: > 30 dB (2.4 kHz)

Audio Storage & Playback

Memory Card Slot

None

Compatibility

OS Compatibility	macOS 10.6 or Later Windows 7 or Later *As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Included Software	None
Processor Requirement	Intel Core i3
Mobile Device Compatibility	None
Required Hardware	Available USB 2.0 Port or USB 3.0 / 3.1/3.2 Gen 1 Port
Internet Connection	Required for Registration

Power

Physical

Rackmount Size	1 RU
Operating Humidity	0 to 75%
Operating Temperature	41 to 122°F / 5 to 50°C
Dimensions	19 x 1.73 x 8.5" / 483 x 44 x 210 mm (with Rack Ears) 17.3 x 1.73 x 8.3" / 440 x 44 x 210 mm (without Rack Ears)
Weight	6.6 lb / 3.0 kg

Packaging Info

Package Weight	11 lb
Box Dimensions (LxWxH)	22.1 x 12.5 x 4.7"
