Плата Yuan SC400N4-L TVI

Плата Yuan SC400N4-L TVI

Артикул 14621
Производитель: Yuan
Цена: 48 719 руб.
Рейтинг:comment rank 5
Просмотров 79
Официальная гарантия

Только под заказ!
Итого:  Кол-во
Заказать

SC400N4-L TVI

4 CH 1080P30 TVI/CVI/AHD/CVBS

SC400N4-L TVI

Max. Input Resolution 1920×1080p@30/25fps
Video Input 4×TVI

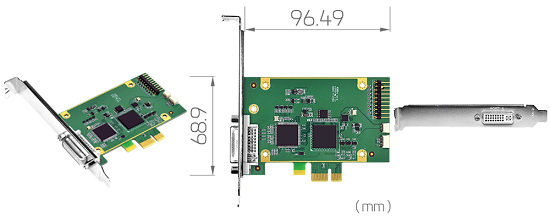

Dimension 96.49×68.9 ( mm )
PCIe Low Profile
Interface PCIe×1 (Gen2)
Feature Multi Instances
Multi Devices
Video Input Detail TVI
CVI
AHD
CVBS
Video Output N/A
Color Format Capture/Preview :
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
Build-in Hardware Encode N/A
Video Processing Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances
Video Resolutions TVI / Compatible Analog HD (A/C) :
1920×1080p@30/25fps
1280×720p@60/50/30/25fps

960H / CVBS :
960×480i@60fps
720×480i@60fps
960×576i@50fps
720×576i@50fps
Audio Input N/A
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
GPIO 8
WatchDog N/A
Supported Software Applications vMix
OBS
ZOOM
Skype
Teams
Discord
Slack
Cisco Webex
GoToMeeting

※DirectShow/V4L2 Compatable Software Supported
SDK Windows and Linux SDK
OS Support Windows 7/Windows 8/Windows 8.1/Windows 10
Linux 4.8 or Higher ( 32-bit and 64-bit )
Linux ARM
nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
