Карта расширения Allen&Heath M-SQ-SMADI-A

Карта расширения Allen&Heath M-SQ-SMADI-A

Артикул 14721
Производитель: Allen&Heath
Цена: 125 351 руб.
Рейтинг:comment rank 5
Просмотров 180
Официальная гарантия

Только под заказ!
Бесплатная доставка по Москве в пределах МКАД!
Итого:  Кол-во
Заказать

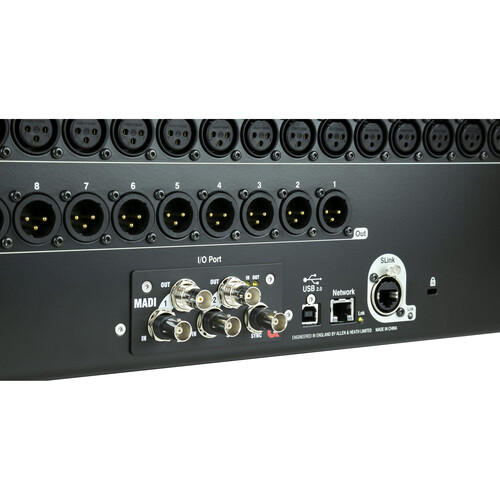

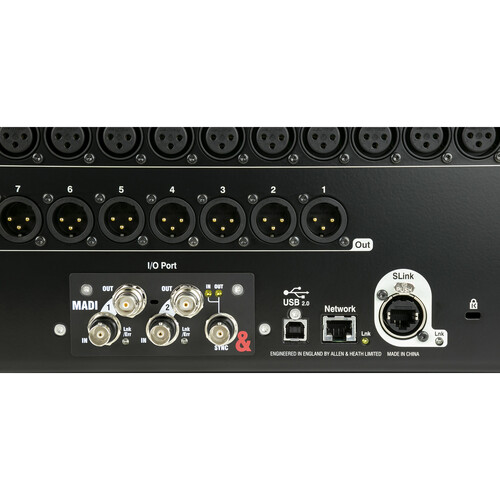

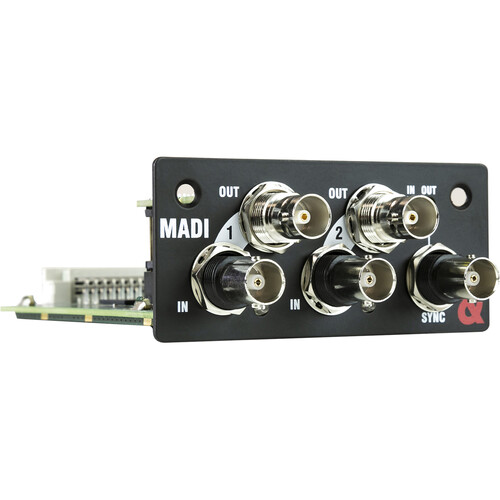

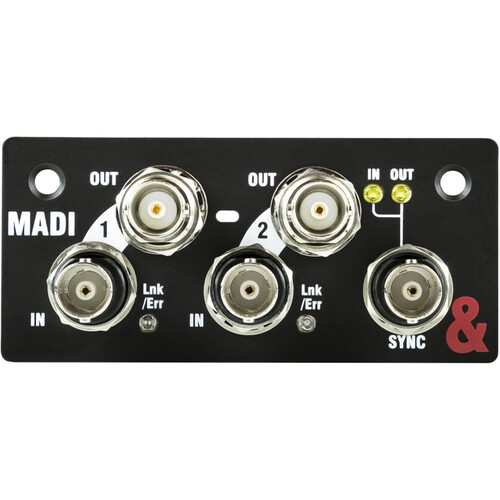

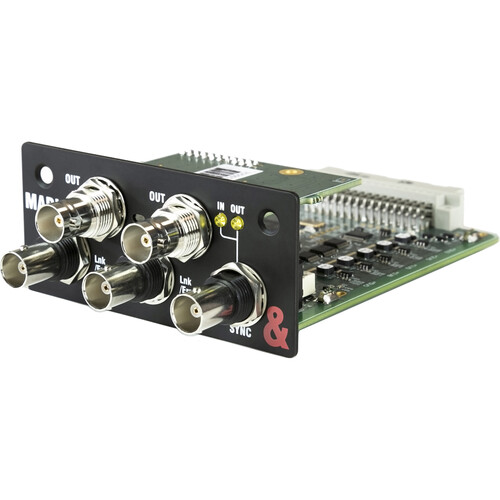

The Allen & Heath SQ MADI is a MADI I/O module for SQ Series mixers, allowing for the connection and synchronization with broadcast or recording systems, OB vans, and 3rd party consoles for high-channel-count feeds over coaxial cables.

The SQ MADI card can be switched to either 96 or 48 kHz and up to 64x64 channels can be routed in or out. Two BNC inputs pair with two BNC outputs to allow for split or redundant setups, while a dual-function (in/out) BNC wordclock connection enables the console to be either master or slave in the system.

Benefits
  • 64×64 channel digital audio
  • 96 or 48 kHz operation
  • Smux or High Speed 96 kHz modes
  • Sync from inputs or separate wordclock
  • Console controlled error handling
  • Four BNC connectors (2 links)
  • One BNC Wordclock I/O
