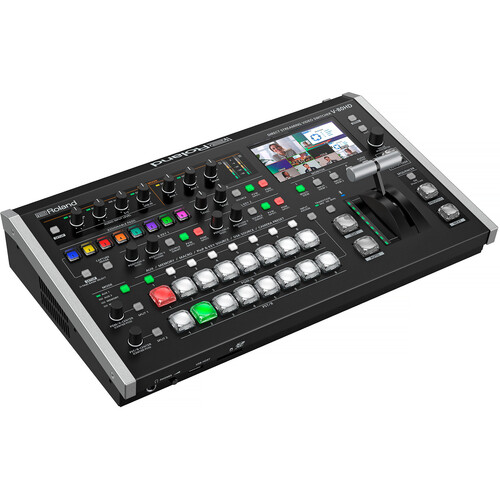

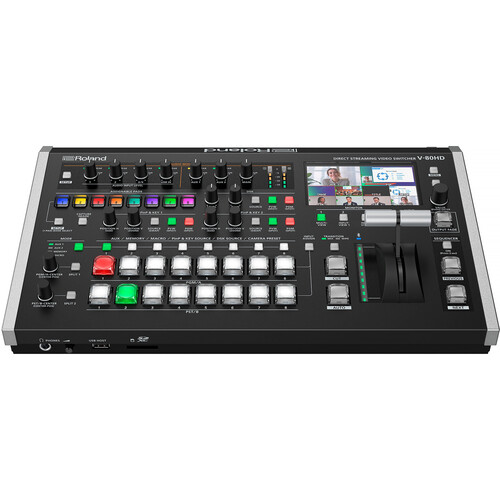

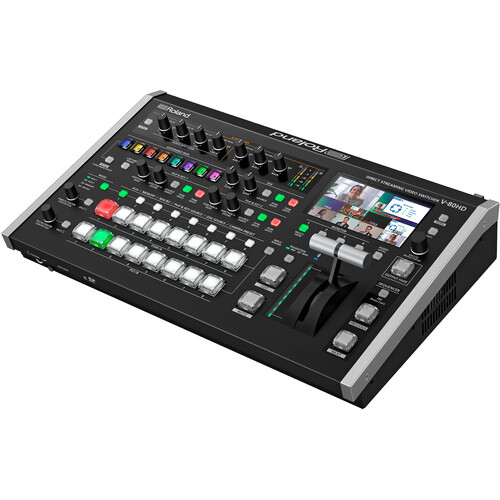

Компактный и мощный V-80HD удовлетворяет потребности в профессиональном видеопроизводстве для очных мероприятий, прямых трансляций, студийного производства и других приложений. Устройство "все в одном" легко переносить и настраивать, а гибкие функции ввода-вывода поддерживают подключения 3G SDI, HDMI, USB 3.0 и LAN (RTMP/SRT). V-80HD также включает в себя многоканальное микширование звука и эффекты, встроенное управление PTZ-камерами и удаленное управление с видеомониторингом через специальные приложения для управления. А с помощью сопутствующего программного обеспечения Graphics Presenter вы можете легко улучшать качество продукции, добавляя впечатляющие титры, анимационную графику и многое другое.
Множество видеовходов
V80 HD оснащен универсальным входом HDMI для обычных аудиовизуальных устройств и SDI для кабелей большой протяженности и высококачественных камер. Всего доступно восемь каналов, что обеспечивает плавное переключение между четырьмя источниками входного сигнала HDMI и четырьмя SDI. Два входа HDMI с разрешением 4K оснащены функцией уменьшения масштабирования и возможностью параллельного подключения к игровым консолям на киберспортивных мероприятиях. Кроме того, вход SRT может быть подключен к кнопке cross-point вместе с входами SDI и HDMI.
Универсальные видеовыходы и гибкая маршрутизация
Мощный движок видеоэффектов
.Professional Graphics Made Easy
The Graphics Presenter software for Windows allows you to create stunning titles and graphics without the need for expensive third-party graphic presentation solutions. Setup with the V-80HD is quick and straightforward, requiring only a single HDMI connection to send fill and key signals from the computer to the switcher.
Graphics Presenter offers an intuitive workflow with a wide selection of ready-to-edit templates, including animated title text, sports scores, motion graphics, and more. The software and templates are available free of charge, and additional content is periodically provided for download on Roland Cloud.
Plug-and-Play Streaming
The V-80HD uses the same connection technology as webcams, providing a plug-and-play streaming experience. Simply connect the USB-C output to a computer or smartphone and start streaming with Zoom, Microsoft Teams, or any platform that can use a webcam as its source. LAN connectivity is also supported, allowing you to stream directly to YouTube, Facebook Live, Twitch, or any RTMP platform without a computer.
Secure AV Transmission with SRT
The V-80HD supports SRT (Secure Reliable Transport), an open-source standard for AVoIP that provides secure encrypted audio and video transmission over IP networks. It also offers future-proof connectivity within installed system configurations. SRT allows you to seamlessly extend your V-80HD production capabilities via LAN or an internet connection. Access camera images from remote locations and switch them along with local HDMI and SDI sources. And send a dedicated SRT video output to an external destination, such as another building at the production location.
SDXC Card Recording
With the V-80HD’s onboard recorder, you can easily capture an event to an SDXC card and provide your client with an H.264 MP4 video file* for their editing and distribution needs. Stereo WAV audio can also be recorded independently for podcasts and other audio-driven media. It’s even possible to capture still images to internal memory from any video output bus and save them to the card for later use.
PTZ Camera Support
Robotic PTZ (pan-tilt-zoom) cameras greatly expand production capabilities, offering extended coverage with studio-grade broadcast quality. And thanks to their small size, they can be placed in discreet locations where larger cameras aren’t practical.
The V-80HD includes built-in control support for select Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ LAN cameras. Mix and match different brands and operate up to 8 PTZ cameras simultaneously. The V-80HD Remote iPad App is an ideal companion for PTZ operation, providing remote camera controls and video monitoring from the tablet.
Rapid Workflow with Scenes and Macros
Storing and recalling custom looks can be accomplished with just a few button presses on the V-80HD. The 32 scene memories and powerful effects engine work together to provide seamless scene changes, including synchronizing the transition of all composition layers at the program output. The 100 macros go even deeper, allowing you to build and fire off complex action lists that include switching, DSK on/off, audio mixing adjustments, PTZ camera movements, and much more.
Our free remote control software for macOS, Windows, and iPad further enhances this workflow, providing a large graphical interface for setting up and previewing actions before you take them live.
Sequencing Magic
The V-80HD’s sequencer makes scenes and macros even more powerful, allowing a single operator to execute perfectly timed cues with ease. You can record up to 1000 steps, and each step can include both scenes and macros. Streamline your productions by setting up cues ahead of time in the sequence list and triggering them in order using the Next button on the panel.
Professional Audio Mixing and Effects
The V-80HD features 28 channels of audio mixing plus a wide selection of processing tools, I/O routing options, and automation features. Enhance sounds with ready-to-use effects, including high-quality vocal processing and a useful Loudness Auto Gain Control function to manage levels while streaming. With the onboard Audio Player, it’s simple to integrate dedicated music and sound effects into every production. Three output buses are available, ready to support complex routing needs for streaming events and studio recording configurations.
Customizable Control Pads
Eight user-assignable pads give you quick control of many V-80HD functions. The pads are organized into eight banks, providing direct access to 64 different operations. Call up scenes, macros, and sequencer steps, trigger audio and video clips, start/stop streams, and more. It’s even possible to control functions in the Graphics Presenter software when the host computer is connected to the V-80HD via USB.
V-80HD iPad Remote Control Utility
The dedicated V-80HD Remote app turns an iPad into an efficient touch interface for the V-80HD, with versatile connectivity via USB, Bluetooth, or a wireless LAN (Wi-Fi) connection. Run essential switching functions, mix audio with virtual faders, quickly change settings and parameters, and create scenes for fast and efficient setup changes. It’s also possible to monitor video and control switching functions from the app with the latest iPad models and a USB connection.*
V-80HD RCS for macOS and Windows
Use the V-80HD RCS application for macOS and Windows to control nearly all V-80HD functions remotely from your computer via USB, RS-232, wired LAN, or wireless LAN (Wi-Fi) connections. The V-80HD RCS can run at the same time as your streaming software over USB, allowing you to manage all video and audio switching from your computer screen, including some operations that are unavailable from the V-80HD panel.
Характеристики:
- Video Processing
- 4:2:2 (Y/Pb/Pr), 8-bit
- Number of Video Channels
- 8 channels
- Video Input Formats
- HDMI IN 1--4
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p,
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p,
1080/23.98p, 1080/24p,
2160/59.94p, 2160/60p, 2160/29.97p, 2160/30p *1
2160/50p, 2160/25p *1
2160/23.98p, 2160/24p *1
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The input refresh rates of SVGA (800 x 600)--SXGA+ (1400 x 1050) are 75 Hz when the unit's frame rate setting is 50 Hz.
* HDMI IN 1 support Roland FILL+KEY signal
*1 Only for HDMI IN 3, 4
SDI IN 1--4
720/59.94p *1, *3
720/50p *1, *4
1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 System Format = 720p
*2 System Format = 1080p
*3 Frame Rate = 29.97 Hz, 30 Hz, 59.94 Hz, 60 Hz
*4 Frame Rate = 25 Hz, 50 Hz - Video Output Formats
- HDMI OUT 1--3, SDI OUT 1--2:
720/59.94p *1, *3
720/60p *1, *4
720/50p *1, *7
1080/59.94i *1, *3
1080/60i *1, *4
1080/50i *1, *7
1080/59.94p *2, *3
1080/60p *2, *4
1080/29.97p *2, *5
1080/30p *2, *6
1080/50p *2, *7
1080/25p *2, *8
1080/23.98p *2, *9
1080/24p *2, *10
*1 System Format = 720p
*2 System Format = 1080p
*3 Frame Rate = 59.94 Hz
*4 Frame Rate = 60 Hz
*5 Frame Rate = 29.97 Hz
*6 Frame Rate = 30 Hz
*7 Frame Rate = 50 Hz
*8 Frame Rate = 25 Hz
*9 Frame Rate = 23.98 Hz
*10 Frame Rate = 24 Hz
USB STREAM:
1080/59.94p, 720/59.94p, 640 x 480/59.94p *1
1080/60p, 720/60p, 640 x 480/60p *2
1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
1080/30p, 720/30p, 640 x 480/30p *4
1080/50p, 720/50p, 640 x 480/50p *5
1080/25p, 720/25p､640 x 480/25p *6
1080/23.98p, 720/23.98p､640 x 480/23.98p *7
1080/24p, 720/24p､640 x 480/24p *8
* Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
*1 Frame Rate(USB Out) = 59.94 Hz
*2 Frame Rate(USB Out) = 60 Hz
*3 Frame Rate(USB Out) = 29.97 Hz
*4 Frame Rate(USB Out) = 30 Hz
*5 Frame Rate(USB Out) = 50 Hz
*6 Frame Rate(USB Out) = 25 Hz
*7 Frame Rate(USB Out) = 23.98 Hz
*8 Frame Rate(USB Out) = 24 Hz
DIRECT STREAM:
720/59.94p *1, *3
720/60p *1, *4
720/29.97p *1, *5
720/30p *1, *6
720/50p *1, *7
720/25p *1, *8
1080/59.94p *2, *3
1080/60p *2, *4
1080/29.97p *2, *5
1080/30p *2, *6
1080/50p *2, *7
1080/25p *2, *8
1080/23.98p *2, *9
1080/24p *2, *10
*1 System Format = 720p
*2 System Format = 1080p
*3 Frame Rate (Stream&Record) = 59.94 Hz
*4 Frame Rate (Stream&Record) = 60 Hz
*5 Frame Rate (Stream&Record) = 29.97 Hz
*6 Frame Rate (Stream&Record) = 30 Hz
*7 Frame Rate (Stream&Record) = 50 Hz
*8 Frame Rate (Stream&Record) = 25 Hz
*9 Frame Rate (Stream&Record) = 23.98 Hz
*10 Frame Rate (Stream&Record) = 24 Hz - Stream and Record formats
- Audio Video
Protocols: RTMP, RTMPS, SRT (Caller, Listener)
Container: FLV (RTMP, RTMPS), MPEG2-TS (SRT)
Recording File Format: MP4
Codec:
H.264, target bitrate up to 20,000 kbps
AAC-LC, 16 bits, 48 kHz, stereo, target bitrate up to 384 kbps
* When the format of either Stream & Record or Video Player/SRT In exceeds 1080/30p, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
* When the sum of the bitrate for Stream & Record and Video Player/SRT In exceeds 20,000 kbps, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
Audio
Recording File Format: WAV
Codec:
Linear PCM, 16 bits, 48 kHz, stereo - Video Player
- Video Player
File Format: MP4
Codec:
H.264, Average bit rate of 20,000 kbps or less, up to 1080/60p
AAC-LC, 16 bits, 48 kHz, stereo
SRT In
Protocol: SRT (Caller, Listener)
Container: MPEG2-TS
Codec:
H.264, Average bit rate of 20,000 kbps or less, up to 1080/60p
AAC-LC, 16 bits, 48 kHz, stereo
* When the format of either Stream & Record or Video Player/SRT In exceeds 1080/30p, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
* When the sum of the bitrate for Stream & Record and Video Player/SRT In exceeds 20,000 kbps, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously. - Still Image:
- Bitmap File (.bmp) Up to 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Up to 1920 x 1080 pixels, 24-bit color
JPEG File (.jpg, .jpeg) Up to 1920 x 1080 pixels, 24-bit color
* It can be stored up to 32 files in the internal memory.
* It can be exported to the SD Card and USB flash drive.
* PNG alpha channel supported. - Video Effects
- Transition: Cut, Mix (Dissolve/FAM/NAM), WIPE (8 types), SPLIT (2 types)
Composition: PinP x 2 (Square, Circle, Diamond), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key, Alpha Key, External Key), Roland FILL+KEY Mode
Other: Multi-View (4 types), Flip horizontal, Flip vertical, Still Image capture, Still Image playback, Output fade (Audio, Video: White or Black), Test pattern output, Stream Delay - Audio
- Audio Processing
- Sample rate: 24 bits, 48 kHz
- Number of Audio Channels
- 28 channels
- Audio Formats
- USB STREAM (input/output): Linear PCM, 16 bits, 48 kHz, 2 ch
Bluetooth (input): Linear PCM, 16 bits, 48 kHz, 2 ch
HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch
HDMI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch
SDI IN: Linear PCM, 24 bits, 48 kHz, 2 ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch (Conforms to SMPTE 299M) - Audio Player
- File format: WAV (Linear PCM, 16 bits, 48 kHz/44.1 kHz, stereo)
* It can be stored up to 64 tracks in the internal memory. - Audio Effects
- Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 4-Band equalizer, Voice changer, Delay, Auto mixing
Master Effects: Reverb, 4-Band equalizer, Compressor/Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay
Other: Output fade, Test tone output - Common Section
- Recording Media
- SDHC/SDXC card (commercially available)
USB flash drive (commercially available)
* SDXC card is required for video recording. - Other Functions
- Scene Memory (32 types)
Macro Control (100 types)
Sequencer Control (1,000 steps)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
Smart Tally
Remote Camera Control (Up to 8 units)
External Rec Control

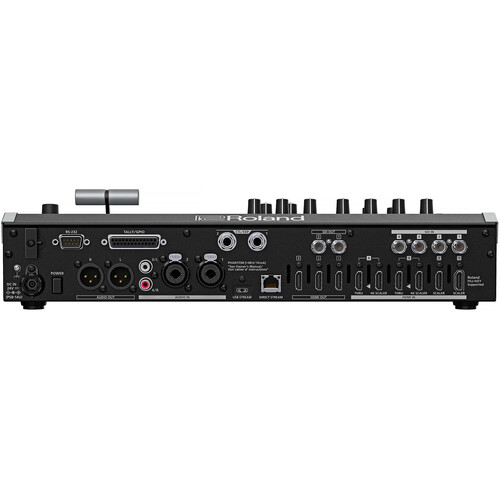

Menu language (English, Japanese, Simplified Chinese) - Connectors
- Video Input Connectors
- HDMI IN 1--4: HDMI type A x 4
* HDCP Supported
* Multi-format Supported
SDI IN 1--4: BNC type x 4
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M - Video Output Connectors
- HDMI OUT 1--3: HDMI type A x 3
* HDCP Supported
HDMI IN 3--4 THRU: HDMI type A x 2
* HDCP Supported
SDI OUT 1--3: BNC type x 2
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
•USB STREAM: USB Type-C (R) - Audio Input Connectors
- Analog:
AUDIO IN 1--2: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 10 mA (maximum load)
AUDIO IN 3/L, 4/R: RCA phono type
Digital:
USB STREAM: USB Type-C (R)
HDMI OUT 1--3: HDMI type A x 3
HDMI IN 3--4 THRU: HDMI type A x 2
SDI OUT 1--2: BNC type x 2 - Audio Output Connectors
- Analog:
AUDIO OUT 1--2: XLR type
PHONES: Stereo 1/4-inch phone type
Digital:
USB STREAM: USB Type-C (R)
Bluetooth
HDMI OUT 1--3: HDMI type A x 3
HDMI IN 3--4 THRU: HDMI type A x 2
SDI OUT 1--2: BNC type x 2 - Other Connectors
- USB HOST: USB A type (for USB flash drive, for remote control from USB numeric keypad)
USB STREAM: USB Type-C (R) (for remote control from PC and iPad, Graphics Presenter)
Bluetooth: for remote control from iPad
CTL/EXP 1, 2:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
RS-232: DB-9 type (Male) (for Remote Control)
DIRECT STREAM: RJ45, 1000BASE-T (for Live Streaming, SRT In/Out and Remote Control) - Audio Input/Output Characteristics
- Input Level
- AUDIO IN 1, 2: -64--+4 dBu (Maximum: +24 dBu)
AUDIO IN 3/L, 4/R: -10 dBu (Maximum: +10 dBu) - Input Impedance
- AUDIO IN 1, 2: 8.4 k ohms
AUDIO IN 3/L, 4/R: 10 k ohms - Output Level
- AUDIO OUT 1, 2: +4 dBu (Maximum: +24 dBu)
PHONES: 92 mW + 92 mW (32 ohms) - Output Impedance
- AUDIO OUT 1, 2: 600 ohms
PHONES: 33 ohms - Others
- Bluetooth
- Ver 5.0
Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method) - Display
- 4.3 inches TFT Color LCD: 480 x 272 dots
- Power Supply
- AC adaptor
- Current Draw
- 2.1 A
- Power Consumption
- 51 W
- Operation Temperature
- +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit - Dimensions
- 396 (W) x 254 (D) x 103 (H) mm
15-5/8 (W) x 10 (D) x 4-1/16 (H) inches - Weight (excluding AC adaptor)
- 3.5 kg
7 lbs 12 oz - Accessories
- Startup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord - Options (sold separately)
- Footswitch: BOSS FS-5U, FS-6, FS-7
Expression Pedal: EV-5, EV-30, BOSS FV-500L, FV-500H
