- High Resolution 8.4-inch screen 800 x 600 Dots with 1.44 million RGB pixels
- 100% digital processing
- 10-bit Analog to Digital conversion
- High resolution scaling
- Wide viewing radius - 130° horizontal and vertical provides superior visibility
- 350 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions
- 350:1 ratio of contrast between black and white luminance values
- 4:3 and 16:9 screen aspect ratios for DTV applications
- Direct access for all adjustments
- Standard inputs:
Two Composite Video inputs per screen with automatic PAL/NTSC standard recognition
Loop-through of all input signals
- Easy to see three color tally indicators
- On Screen Display (OSD)
- Blue Screen for color adjustment
- Adjustment Settings Memory
- Ready to Rack Mount out-of-the-box
|
|

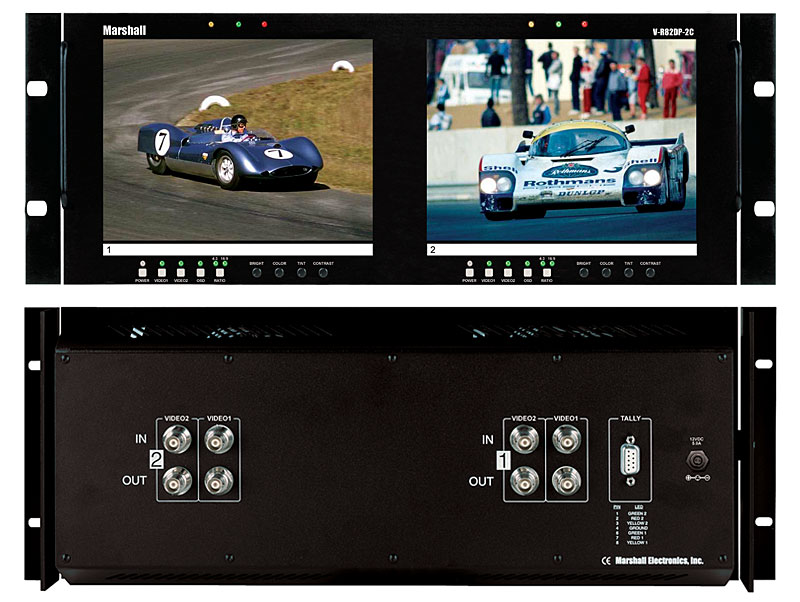

Our TFT-MegaPixel V-R82DP-2C is a direct replacement for 8 and 9-inch CRTs used in broadcast and professional video applications. Ready to rack mount in 4RU, this model saves valuable rack space, in addition to its low weight and power consumption when compared to similar CRT products. Analog signals are digitized using an advanced 10-bit process, and all screen formats are scaled to fit onscreen in the highest resolution using our proprietary program and state-of-the-art LSI. |
Display (Viewing Area)
|
8.4 Inch diagonal (170.4mm W x 127.8mm H) |
Resolution (Pixels)
|
800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors) |
Dot Pitch
|
.213mm square pixel |
Brightness (in cd/m²)
|
350 |
Contrast Ratio
|
350:1 |
System
|
NTSC/PAL auto recognition |
Inputs per panel (total)
|
2 (4) Composite per screen |
Dimensions
|
19.12" w x 6.875" h x 1.5" d (485.7mm x 174.6mm x 38.1mm) |
Approx. Weight
|
5.4 lbs (2.4 kg) |
Power Consumption
|
App. 36 Watt (5Amp 12 VDC Class 2 power supply included) |
• Studio Monitor Wall
• Remote/OB Van
• EFP/ENG
• Camera Shading |
|
• Fly Packs
• VTR/DDR Replay
• ISO Recording
• Security /Surveillance |
|
|
