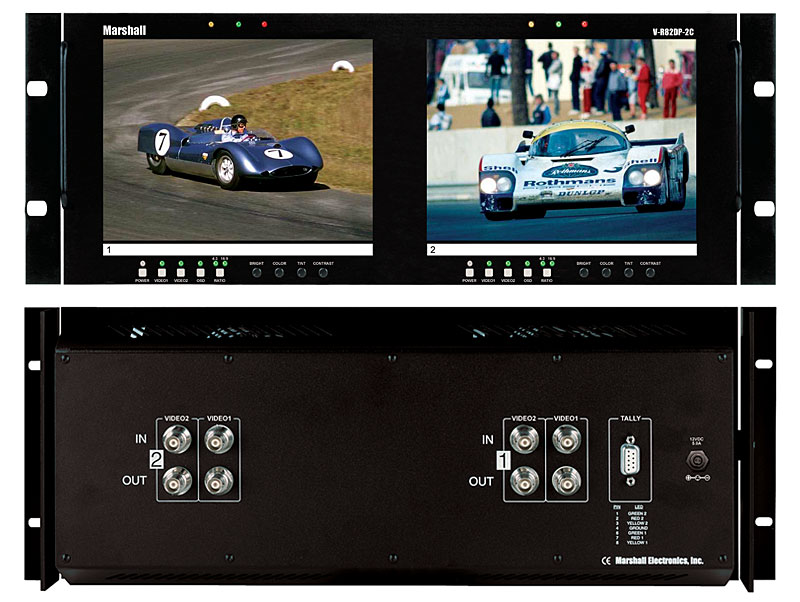

Marshall Electronics V-R82DP-SD

Marshall Electronics V-R82DP-SD

Артикул 01560
Производитель: Marshall Electronics
Цена: 413 751 руб.
Рейтинг:comment rank 5
Просмотров 4398
Официальная гарантия

Только под заказ!
Итого:  Кол-во
Заказать


Панель из 2-х 8.4" LCD мониторов, 800x600 пикселей, 500 кд/м2, 4U, входы (2): Composite (проходной)/ Y/C (проходной)/ YUV (проходной)/ SDI (проходной)/ DVI/ SXGA, Tally, DC 12 V. Блок питания в комплекте.

MARSHALL ELECTRONICS V-R82DP-SD

Features:
  • High Resolution 8.4-inch screen 800 x 600 Dots with 1.44 million RGB pixels
  • 100% digital processing
  • Match Color Conversion
  • 10-bit Analog to Digital conversion
  • Adjustable color temperature
  • Wide viewing radius - 130°
  • 500 cd/m2 luminance
  • 500:1 contrast ratio
  • 4:3 and 16:9 screen aspect ratios
  • Direct access for all adjustments
  • Three color tally indicators
  • On Screen Display (OSD)
  • Blue "Gun" for color adjustment
  • Adjustment Settings Memory
  • Underscan
  • Standard inputs for each screen:
              SDI (ITU-BR601/SMPTE-259M)
              Component analog (YCbCr) (YPbPr) for all HD and SD formats
             Composite Video auto PAL/NTSC recognition
             S-Video (Y/C)
             DVI (Analog and Digital with HDCP)
             PC up to XGA (1024 x 768)
             Loop through of all video input signals
  • Ready to Rackmount out of the box

Our V-R82DP-SD is a direct replacement for 8 and 9-inch CRTs used in broadcast and professional video applications. Ready to rack mount in 4RU, this model saves valuable rack space, weight and power when compared to CRT products. The V-R82DP-SD includes our Award Winning Digital TFT-MegaPixel system.

Inputs are provided for SDI (Serial Digital Interface), SD and HD Component Analog, Composite, Y/C, DVI Analog or Digital with HDCP, plus PC up to SXGA resolution. Analog signals are digitized using an advanced 10-bit process, and all screen formats are scaled to fit on screen in the highest resolution using our proprietary program and our new LSI technology with Match Color Conversion to emulate SMPTE-C phosphor of a CRT.
       SPECIFICATIONS
Display (Viewing Area)
 8.4 Inch diagonal (170.4mm W x 127.8mm H)
Resolution (Pixels)
 800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors)
Dot Pitch
 .213mm square pixel
Brightness (in cd/m²)
 500
Contrast Ratio
 500:1
System
 NTSC/PAL auto recognition
Inputs per panel (total)
 1 (2) SDI
1 (2) Composite
1 (2) S-Video (Y/C)
1 (2) Component
1 (2) DVI
1 (2) PC-XGA (1024 x 768)
Dimensions
 19.12" w x 6.875" h x 1.5" d (485.7mm x 174.6mm x 38.1mm) 4RU
Approx. Weight
 5.4 lbs (2.4 kg)
Power Consumption
 Approx. 36 Watts (5Amp 12 VDC Class 2 power supply included)
       APPLICATIONS
• Studio Monitor Wall
• Remote/OB Van
• EFP/ENG
• Camera Shading		   • Fly Packs
• VTR/DDR Replay
• ISO Recording
