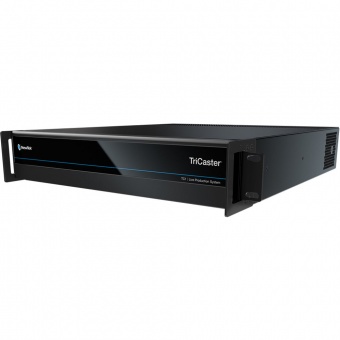

NewTek TriCaster TC410 Plus медиа-хаб

8 x simultaneous external video inputs, supporting any combination of compatible sources

8 x IP video inputs via NDI, resolution-independent, with support for key and fill

4 x HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates ¹

• 1080p: 59.94, 50, 29.97, 25, 24, 23.976
• 1080i: 59.94, 50
• 720p: 59.94, 50, 29.97, 25
• 576i 25
• 480i 59.94

¹Available frame rates determined by session video standard (NTSC or PAL)

Support for Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system

Native support for Skype^® video call input via Skype TX software integration

4 x independent IP video mix outputs via NDI^®

2 x independently configurable HD/SD video outputs, with support for up to 4 simultaneous external connections

2 x resolution-independent streaming video output, independently configurable, with simultaneous stream archive

1 x DVI user interface with multiviewer
1 x HDMI multiviewer
1 x DisplayPort multiviewer

4 x M/E buses supporting video re-entry

• 1 x Mix/Effect channel per bus with support for up to 2 sources
• 2 x KEY layers per bus

1 x PREVIZ configuration and preview bus

2 x DSK channels

5 x media players

• 2 x DDR
• 2 x GFX
• 1 x Sound

15 x media buffers

• 5 x animation buffers
• 10 x graphic buffers

Integrated LiveMatte^® chroma and luma keying technology on all source channels and M/E buses

• 8 x input keyers
• 4 x media player keyers
• 4 x M/E keyers
• 1 x PREVIZ keyer
• 15 x buffer keyers

Integrated LiveSet^® technology with 30+ live virtual sets and box effects included

Integrated DataLink^® technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more

Record, store, edit, and automate commands and user-configured operation sequences

• Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI, and X-keys^® buttons or GPI triggers
• Attach to internal events and state changes, including audio, media playback, tally, and specific switcher actions
• Supports control via web-based interface

6 x configurable video recording channels via IsoCorder^® technology

• 4 x QuickTime^® archival video recorders (SHQ2 quicktime codec, 4:2:2 encoding, 24-bit audio, with timecode)2
• 2 x H.264 local video recorder (multiple profiles)
• Ability to trigger up to 6 additional recordings on select NDI-enabled devices
• 1 x MP3 audio recorder

2 QuickTime Player not required for playback in common NLE applications

1 x 3TB internal drive

• Capacity varies by format, resolution, and file specification
• Supports recording to external storage via USB 3.0
• Supports shared storage integration and third-party partner solutions

Grab full-resolution, deinterlaced still images from external video sources and outputs

Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding

Integrated multi-channel audio mixer with support for quad-channel audio, DSPs, 4 x 4 x 4 audio input channel routing

4 x SDI embedded
1 x Balanced XLR stereo pair (Line)
3 x Balanced 1/4” stereo pairs Line)
Support for USB audio device input via compatible WDM audio drivers

4 x SDI embedded
1 x Balanced XLR stereo pair
1 x Balanced 1/4” stereo pair
1 x Stereo ¼” (phones)

Native support for network audio input and output via NDI^®
Embedded audio supported for all NDI^® input and output video signals
Integrated support3 for Dante^® networking protocol from Audinate^® Support for AES67 protocol via compatible WDM audio drivers 3 Requires Dante Virtual Soundcard license from Audinate (sold separately) 4Requires third-party virtual sound card license (sold separately)

Import, store, and play back multimedia files, with optional transcoding, including:

• Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
• Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
• Audio: AIFF, MP3, WAV, and more

Support for up to 3 multiviewer displays with configurable workspaces and viewports

Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709

Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz

~1.0-1.5 frames

HD-SDI video conforms to SMPTE 292M SD video conforms to SMPTE 259M and ITU-R BT.656 Analog audio levels conform to SMPTE RP-155

Support for hardware tally via HD15 GPI connector, network tally via NDI^®, and Blackmagic Design^® SDI tally standard

Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals

Supports GPI signals via JLCooper Electronics eBox GPI interface

Support for standard MIDI protocol enabling third-party device control
System Drive 250GB SSD

2 x 1 Gigabit NIC

2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe

• 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attached
