Мобильные видеостудии Datavideo HS-2200

Мобильные видеостудии Datavideo HS-2200

Артикул 07018
Производитель: Datavideo
Рейтинг:comment rank 5
Просмотров 5603
Официальная гарантия

Только под заказ!
Бесплатная доставка по Москве в пределах МКАД!
Звоните!!!

HS-2200 - мобильная телестудия "в чемодане" на базе HD микшера SE2200. 6 входов (4-6 HD/SD-SDI + 1-2 HDMI входа.

Основные особенности:

    6-входовый HD вещательного качества Портативный Микшер
    Идеален для прямого вещания в церквях, школах, институтах, клубах, ресторанах или на конференциях
    Входы: 6 x HD/SD-SDI, 2 x HDMI (CH 5 & 6)
    Два окна PIP (Картинка-в-Картинке), встроенная система наложения титров, которая работает с простыми программами наложения титров от Datavideo, PowerPoint или другими графическими программами
    Встроенная 8-канальная Интерком Система (4 x поясных блока в комплекте)
    17.3" HD ЖК-монитор
    'Программа' и 'Превью' на экране Мультискрина

HD 6-Channel Portable Mobile Cast Video Studio

Cost-effective and portable. Perfect for productions using multiple IMAG screens



The HS-2200 comes with 6 configurable SDI video outputs.

Ideal for live production venues, religious worship, meetings or conference purposes. It's perfect for sending video to multiple IMAG screens or display monitors.

6 inputs, 6 outputs. Support for medium to large productions.



With 6 HDMI and SDI inputs, the HS-2200 has convenient support for most cameras and video input devices, like computers. Coupled with 6 outputs, the HS-2200 is an affordable choice for supporting large productions.



Build in Intercome System



Built in 8 Channel Intercom/Talkback system (4 x belt packs supplied)

17.3'' LED Backlit Monitor



Built-in Monitor Display. 17.3'' HD TFT LED backlit monior with resolution 1600x900 pix.

Dual PIP and a built-in title creator system



Works with Datavideo CG systems, PowerPoint and other graphics programmes perfectly.

Professional 10-bit processing switcher



Providing you the best and professional quality of video processing.



Real-time clock featuring HH:MM:SS on the multi-screen

Count down counter MM:SS

Specifications

HS-2200 6 input HD broadcast quality Mobile Studio
Video Standard

HD & SD

Video Format

1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i 50Hz
480i 59.94Hz

Input Routable / Crosspoint

All 6, repeatable

Video Input

6x HD-SDI, 2x HDMI (on CH5 & 6)

Computer Graphic Interface

2 via HDMI

Down-converted Output

N/A

Video Output

5x SDI Outputs assignable: AUX 1-4, PGM, PVW, PGM Clean or multiview
1x HDMI multi-view

Audio Input

4x Balanced XLR

Audio Output

2x Balanced XLR

Embedded Audio Support

Input up to 16 channels,
Output 4 channels

Audio Delay Calibration

N/A

A+V Switching

Yes

USK

N/A

DSK

1, support Lumakey & Linear key (Key / Fill)

Picture in Picture

2

Logo Insertion

2 (or 1 logo + 1 clock)

Title Creator

Yes, CG-200 software free download

Built-in Audio Mixer

N/A

Built-in Monitor Display

17.3” HD TFT LED backlit, 1600x900 pix

Built-in Intercom & Tally

8 channels (4 belt-packs incl.)

Special Features

Built in TC-200 CG interface
6x6 matrix seamless switch

Dimension (LxWxH)

455 x 355 x 134 mm

Weight

16.5 Lbs (7.5 kg), Reinforce Plastic Case

Power

DC 12V, 5A

Operating Temp. Range

0~40 °C

Options

CB-22H/23H/46/47/60/61/62

What's in the Box

1 x HS-2200 Unit
1 x AD Switch DC 12V with AC Cord
1 x CB-41 / XLR to XLR Cable
4 x CB-3 / XLR cable
1 x USB Light
1 x Goose neck MIC
4 x Headphone Microphone
4 x ITC-100SL
4 x Tally light
4 x Velcro
1 x Thank You Card

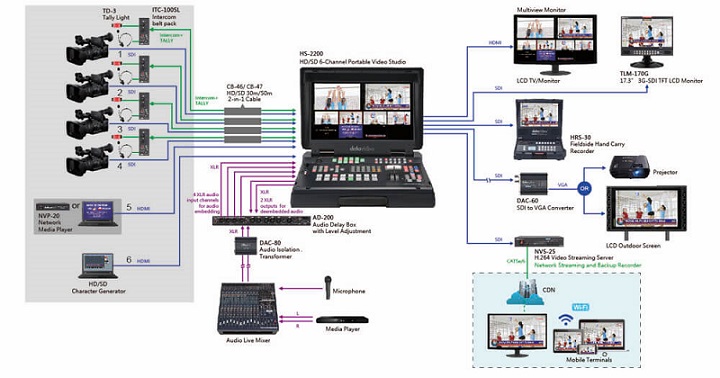

Workflow
