HD/SD 12-входовой видео микшер
HD/SD SDI видеомикшер с 12-ю универсальными HD/SD входами /выходами и мощными видео эффектами. Входы 1080i/P & 720P, 1080i выход. При максимальном кол-ве входов - 12 может быть следующее кол-во входов: 12 HD SDI,12 SD SDI, 6 CVBS, 3 HDMI. Качество цифрового сигнала 4:2:2 (10 бит). Поддержка HD и SD. Встроенный Datavideo TC-200 CG интерфейс, поддержка наложения титров CG от компьютера. Входные сигналы могут быть как высокой, так и стандартной четкости. Многоэкранные выходы HDMI на один или на два монитора с 1920 х 1080i разрешением. 2 канала DSK для наложения титров и графики. HD и SD выход одновременно. С панелью управления в комплекте.

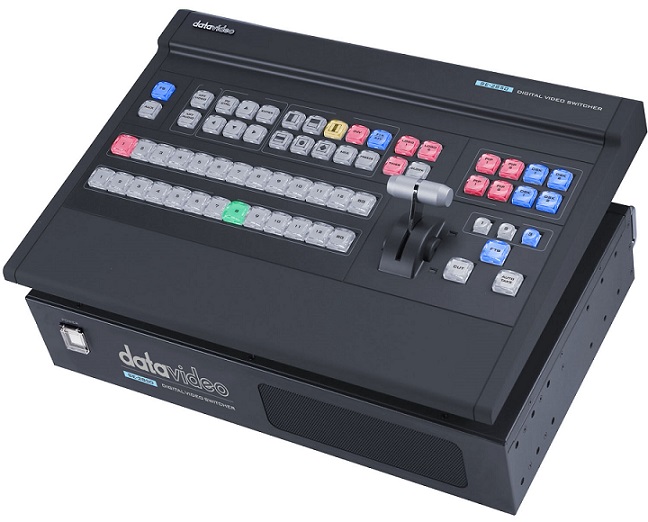

HD/SD 8/12-Channel Digital Video Switcher
8 inputs standard. Upgradable to 12 inputs.
The SE-2850 is the only rack-mounted, 8-input switcher that can be upgraded to 12 inputs to support even larger productions. (SDI and HDMI inputs)
Support for various input resolutions simultaneously
Connect cameras, computers, and other devices with different video resolutions. Thanks to its built-in video scaler, the SE-2850 will scale all the inputs for the proper working environment.
Perfect lip sync
The SE-2850's included audio-delay feature ensures that you'll be able to keep your audio and video perfectly in sync with one another. This means zero lip sync issues for your professional production.
Assignable Crosspoints
The SE-2850's inputs can be reassigned, giving you more flexibility while organizing the multi-view interface.
Included CG Title Creator
The SE-2850 includes the entry-level CG-200 software for creating on-screen text and titles. (Upgradable to CG-350 for advanced features)
Supports 12 HD or SD Inputs in a variety of configurations
HD Mode: (1) 8/12 HD-SDI , (2) 6/9 HD-SDI + 2/3 HDMI
SD Mode: (1) 8/12 SD-SDI , (2) 6/9 SDI + 2/3 HDMI
Professional 10-bit processing switcher
Providing you the best and professional quality of video processing.
Real-time clock featuring HH:MM:SS on the multi-screen
Count down counter MM:SS
Specifications
| SE-2850 HD/SD 8/12-Channel Digital Video Switcher | |
|---|---|
| Video Standard |
HD & SD |
| Video Input Format |
1080p 25/29/30/50/59.94/60Hz |
| Video Processing |
SDI: 4:2:2 |
| Input Routable / Crosspoint |
All 12, repeatable |
| Video Input |
Standard: 8x SDI, 2x HDMI |
| Mix HD & SD Source |
Yes |
| Computer Graphic Interface |
Max 3 via HDMI |
| Video Output |
4x SDI assignable: Output Resolution: |
| Down-converted Output |
4x SDI |
| Built-in Multi-view Monitoring Out |
2x HDMI |
| Analogue Audio Input |
4x Balanced XLR |
| Analogue Audio Output |
2x Balanced XLR |
| Digital Embedded Audio Support |
Input up to 16 channels, Output 4 channels |
| Audio Delay Calibration |
Up to 8 frames per channel (*SDI input audio only) |
| A+V Switching |
Yes |
| Title Creator |
Yes, CG-200 software free download |
| DSK |
2x DSK support Lumakey/ Linear key (Key / Fill) |
| Picture in Picture |
2 |
| Logo Insertion |
2 (or 1 logo + 1 clock) |
| Still Store |
12 |
| Effects |
FTB, Cut, 8 Wipe with border |
| Transition Preview |
PiP & DSK |
| Sync / Reference In/Out |
Built-in Genlock |
| Tally Output |
1x D-sub 25pin, dual color |
| PC Remote Control |
Ethernet (free Window software) |
| Special Features |
4-CH SD downconvert output |
| Chassis |
2 units, 2RU rack-mount mainframe |
| Dimension (LxWxH) |
433 x 312 x 76 mm (switcher) |
| Weight |
4.7 kg |
| Power |
DC 12V, 44W |
| Operating Temp. Range |
0~40 °C |
| Options |
CB-46/47/60/61/62 |
| What's in the box |
1 x SE-2850 Main Unit |
