Монтажное оборудование Datavideo HS-2850-8

Монтажное оборудование Datavideo HS-2850-8

Артикул 09126
Производитель: Datavideo
Рейтинг:comment rank 5
Просмотров 2808
Официальная гарантия

Только под заказ!
Бесплатная доставка по Москве в пределах МКАД!
Звоните!!!

HD/SD SDI видеомикшер с 8-ю универсальными HD/SD входами /выходами и мощными видео эффектами. Входы 1080i/P & 720P, 1080i выход. Кол-во входов - 8 может быть следующее кол-во входов: 8 HD SDI,8 SD SDI, 4 CVBS, 2 HDMI. Качество цифрового сигнала 4:2:2 (10 бит). Поддержка HD и SD. Встроенный Datavideo TC-200 CG интерфейс, поддержка наложения титров CG от компьютера. Входные сигналы могут быть как высокой, так и стандартной четкости. Многоэкранные выходы HDMI на один или на два монитора с 1920 х 1080i разрешением. 2 канала DSK для наложения титров и графики. HD и SD выход одновременно. С панелью управления в комплекте.

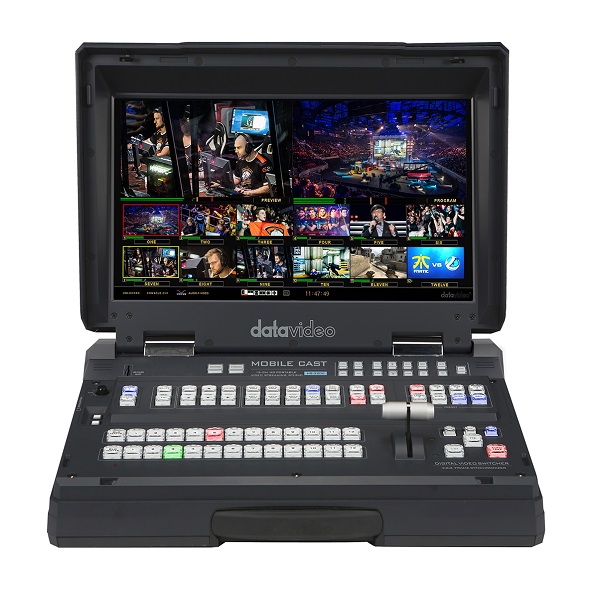

HD/SD 8/12-Channel Portable Video Studio

A complete and professional studio made for big events.



This professional studio includes a built-in switcher, intercom, tally, audio delay and monitor.

Ideal for large-sized live video productions.



Supports up to 12 HD or SD inputs in a variety of configurations, 3 SDI and 1 HDMI freely assignable outputs.

Create impressive video effects to enhance your production.



2 x PIP and 2 x DSK assignable for luma key or alpha key.

17.3'' LED Backlit Monitor



Built-in Monitor Display. 17.3” HD TFT LED backlit monior with resolution 1920x1080 pix.

Build in Intercome System



Built in 8 Channel Intercom/Talkback system (4 x belt packs supplied)

Built-in title overlay



Add custom graphics to help tell your story with the built-in title overlay system.

Perfect lip sync



The SE-2850's included audio-delay feature ensures that you'll be able to keep your audio and video perfectly in sync with one another. This means zero lip sync issues for your professional production.

Assignable Crosspoints



The SE-2850's inputs can be reassigned, giving you more flexibility while organizing the multi-view interface.



Supports 12 HD or SD Inputs in a variety of configurations



HD Mode: (1) 12 HD-SDI , (2) 9 HD-SDI + 3 HDMI
SD Mode: (1) 12 SD-SDI , (2) 9 SDI + 3 HDMI

Real-time clock featuring HH:MM:SS on the multi-screen



Count down counter MM:SS

Specifications

HS-2850 HD/SD 8/12-Channel Portable Video Studio
Video Standard

HD & SD

Video Format

1080p 25/29/30/50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i 50Hz
480i 59.94Hz

Input Routable / Crosspoint

All 12, repeatable

Video Input

Standard: 8x SDI, 2x HDMI
Max: 12x SDI, 3x HDMI

Computer Graphic Interface

Max 3 via HDMI

Down-converted Output

3x SDI

Video Output

3x SDI assignable: PGM, PVW, AUX & Clean Out
1x HDMI assignable: PGM & multi-view

1080i 50/59.94/60Hz
1080p 25/29/30

Audio Input

4x Balanced XLR

Audio Output

2x Balanced XLR

Embedded Audio Support

Input up to 16 channels,
Output 4 channels

Audio Delay Calibration

Up to 8 frames

A+V Switching

Yes

USK

N/A

DSK

2, support Lumakey & Linear key (Key / Fill)

Picture in Picture

2

Logo Insertion

2 (or 1 logo + 1 clock)

Title Creator

Yes, CG-200 software free download

Built-in Audio Mixer

N/A

Built-in Monitor Display

17.3” HD TFT LED backlit, 1920x1080 pix

Built-in Intercom & Tally

8 channels (4 belt-packs incl.)

Special Features

Built in TC-200 CG interface

Dimension (LxWxH)

455 x 355 x 134 mm

Weight

18.7 Lbs (8.5 kg), Reinforce Plastic Case

Power

DC 12V, 6A

Operating Temp. Range

0~40 °C

Options

CB-22H/23H/46/47/60/61/62

What's in the Box

1 x HS-2850 Unit
1 x AD Switch DC 12V with AC Cord
1 x CB-41 / XLR to XLR Cable
4 x CB-3 / XLR cable
1 x USB Light
1 x Goose neck MIC
4 x Headphone Microphone
4 x ITC-100SL
4 x Tally light
4 x Velcro
1 x Thank You Card

Workflow
